The Armoury Review :: Super Soaker Helix (Soaker Tag)

.: Statistics measured at iSoaker.com



super_soaker_helix



Manufacturer: Hasbro Inc.

Class:  Piston

  Item Number: 52584, C12
  Copyright Date / Release Date: 2003 / 2004
  Patents:
  Availability: No Longer Made



Basic Statistics ::

  Weight: 760.00 g (26.86 oz.)
  Reservoir Volume: 900.00 mL (30 fl.oz.)
  Pressure Chamber Volume: N/A
  Pump Volume: 37 mL (1.23 fl.oz.)

iSoaker.com Ratings .:

Power: 5

Range: 80

Encumbrance: 45

Ergonomics: 80

Capacity: 45

Overall: 80


Blaster Dimensions :: 43.0 cm (16.93 ") x 8.0 cm (3.15 ") x 20.0 cm (7.87 ")

Length x Width x Height


Version Colours .:

Body

Reservoir

Pressure Chamber

Detailing

Notes

1 ::

White
Purple
N/A
Yellow
None

2 ::

Blue
Red
N/A
Black, Red, Silver, and Orange
Colour Variant - Spiderman 3

Nozzle Information: 2 (side-by-side; rotating)) .:




Range (level)


Range (45°)


Output

iSoaker Output Rating

iSoaker Power Rating

Shot Time

Main ::

7.0 m (22.97')

10.0 m (32.81')

N/A

N/A

N/A

N/A

Wide ::

6.0 m (19.69')

7.0 m (22.97')

N/A

N/A

N/A

N/A


Notes:

  • Most statistics are from models tested by iSoaker.com; individual performance may vary; some models exhibit greater variability than others (i.e. output, range, colours, etc.)
  • Please reference iSoaker.com if you use any information from any part of this website.

Own this product?

Submit a Review Online

Compare Products

Product Comparison Page

Search For Another?



More Water Blaster Images Water Blaster Videos Water Blaster Internal Pictures Uses QFD / Fast-Fill Device Blaster Inspector

iS SuperSoaker helix_02tbThe Super Soaker Helix is a Power Soaker with pluses! Unlike the smaller Power Soakers, the Helix has its own reservoir that holds a respectable amount of water. The body construction feels quite solid and the back-side handle is quite comfortable to hold. The reservoir features a Fast-Fill cap meaning that with a decent pressure water stream (i.e. from an average garden hose), one can fill the reservoir without needing to remove the cap completely. However, water will not spill out from the reservoir after. The cap, while it can be fully removed in case the fast-fill does not work, does not have a tether.

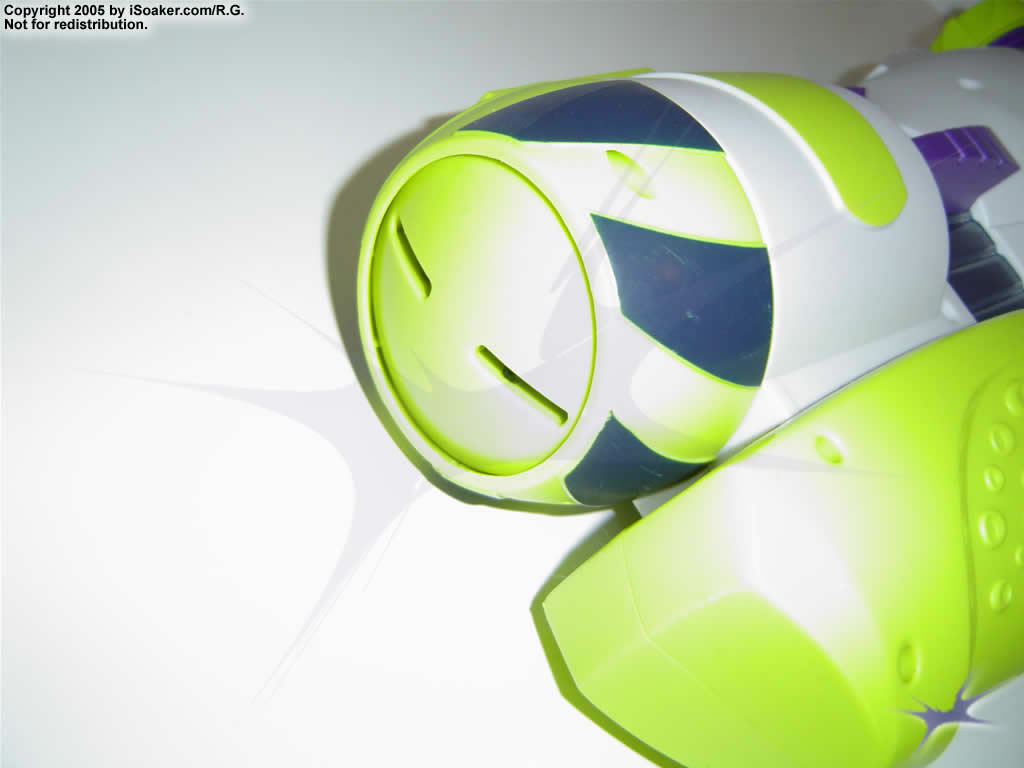

iS SuperSoaker helix_12tbThe Helix derives its name from the helix of water its dual nozzles produce. Basically, extending the pump fills the pump-piston with water. Pulling the pump pushes water out of the dual nozzles while, at the same time, rotating them clockwise yielding what appears to be dual twisting streams of water. On top of this, the angle of the nozzles can be easily adjusted by turning the dial at the very front of the blaster (the stripped area at the front rotates 360 degrees around). Rotating this dial toggles the dual nozzles from narrow to wide angles. Due to the spinning nature of the streams produced, the resulting blast leaves amusing circular water patterns. What this also means is that if one tilts the blaster even only slightly while shooting, the area that would be covered by water is greater than any single-nozzled blaster, but more concentrated than any fan-blast. The overall effect of the dual streams is reminiscent of a riot-blast as could be done on earlier XP models, but much more controlled.

iS SuperSoaker helix_11tbBeing piston-based, the range of the streams are dependant on how forcefully one is able to pull the pump. However, as the Helix does not need to be pressurized, it means instant soaking action on demand as each pump pushes a respectable amount of water.

All-in-all, the Super Soaker Helix is a very good close-range soaker with excellent soaking capabilities. While the streams do not produce the same punch nor get as much range as XP, Max-D or CPS-class blasters, what is sacrificed in range is made up for in terms of sheer soaking power. A single pump from the Helix could easily drench an opponent's shirt. Useful as a main blaster in small-to-mid skirmishes, this soaker is likely best used as a close-range extreme soaking back-up blaster. Simply pull it out, pull the pump, and let the water fly. If only it had a strap...

Note: in 2006, a Max-Infusion variant of the Super Soaker Helix was released. The Super Soaker Max-Infusion Helix is identical in design to the original Super Soaker Helix, but its reservoir cap was enlargened and modified such that it could be attached to the Super Soaker Max-Infusion Aquapack reservoirs.

Pros

Respectable amount of water unleashed per pump. Piston-based design means no pre-pumping required to build enough pressure to shoot. Spinning nozzles produce a spiralling stream that soaks larger areas very quickly. Nozzles' angle easily adjustable simply by turning the forward-placed dial. Can be fast-filled from a hose without needing to remove the reservoir cap.

Cons

Piston-based system means soaker cannot be fired continuously. Narrowest nozzle setting not exactly straight, thus streams still spread apart. Lack of strap means that a bag or backpack is required if one wants to use this as a back-up blaster.


Submitted Reviews:

By: Oncoming Storm | Posted: 20130403

Manufacturer: Hasbro Inc.

Review:

I had one of these back in 2005 when it was just out and to be honest never really liked it. For one the range was poor even for a 10 a year old kid second the gimic of "more water" was just that... a gimic 19 shots per refill even a CPS 2000 can last longer tap shooting. Then there was the rotating nozzle which had a habit of not rotating, and a pump that just kept on jaming over and over again and it all this adds up to my least favorite blaster ever. The bright side if there was one was that it was very durable it lasted till 2010 when the pump finally became immobilized.
