Unopened Super Soaker Arctic Blast showing side with screw holes. |

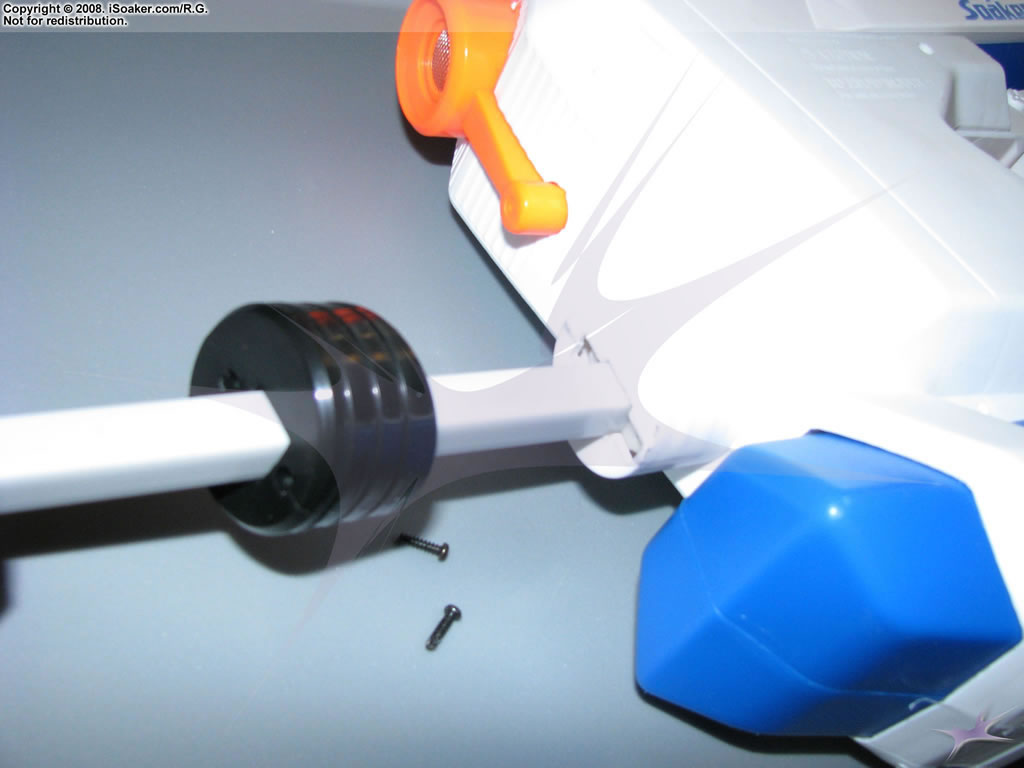

Pump cap attached with two small screws. Cap easily slid off one screws were removed. |

Side cover fully removed. |

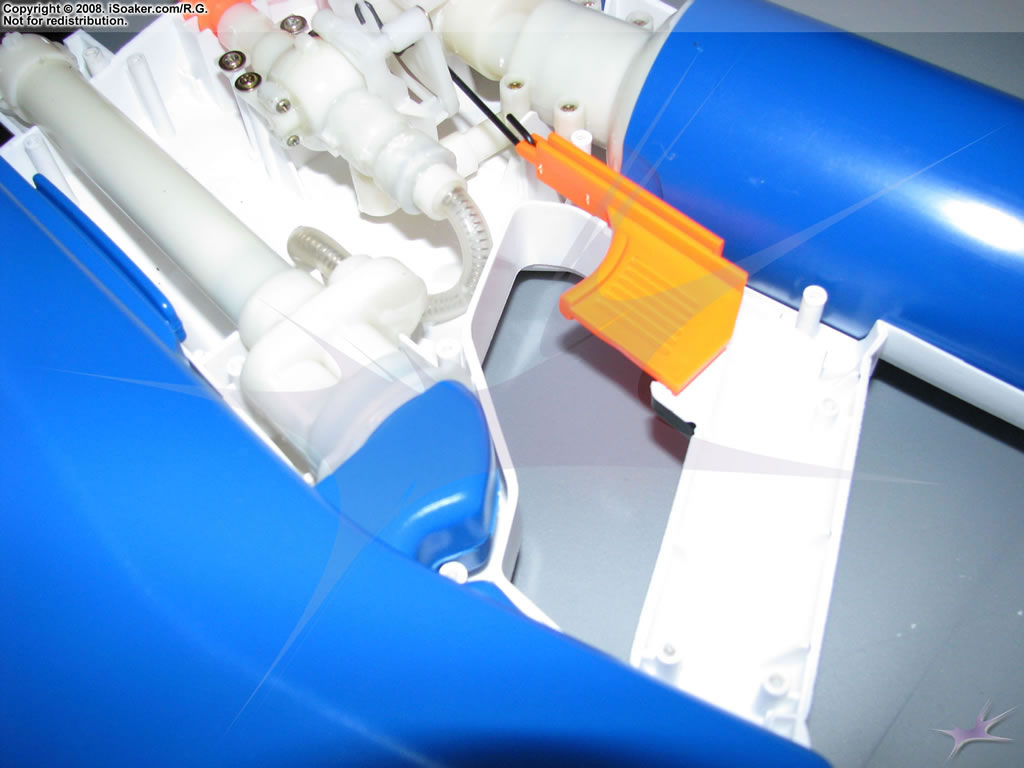

Trigger/grip area and reservoir intake tubing. |

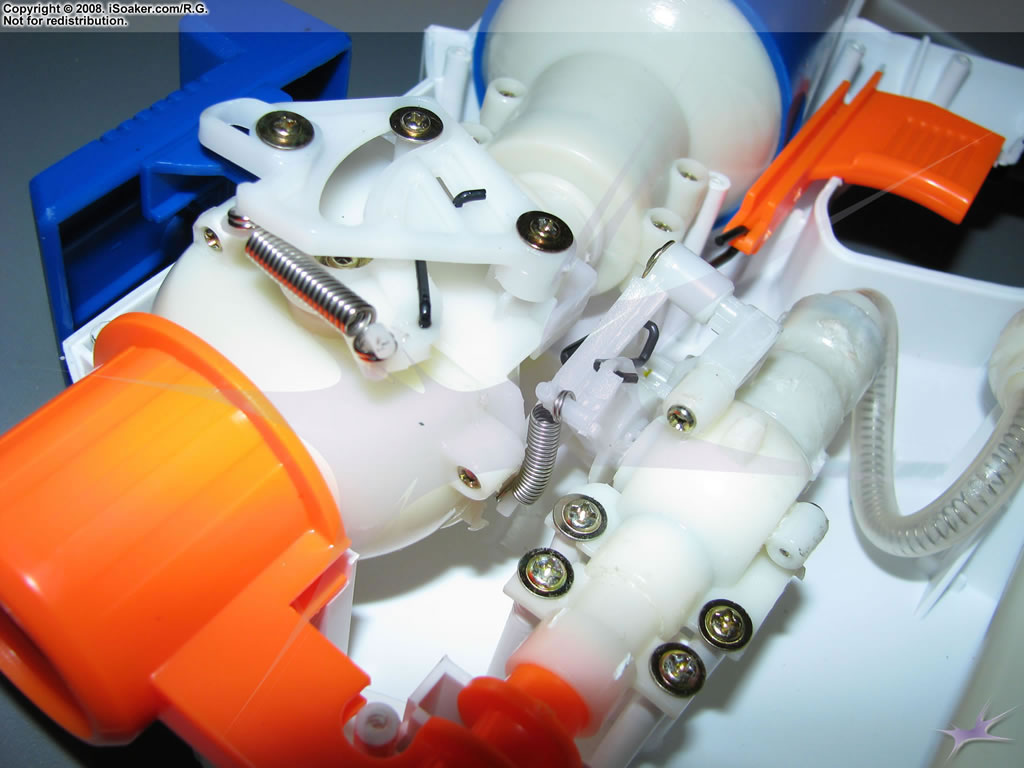

3/4 view of Max-D trigger systems for both the stream nozzle and the "Flood" nozzle. |

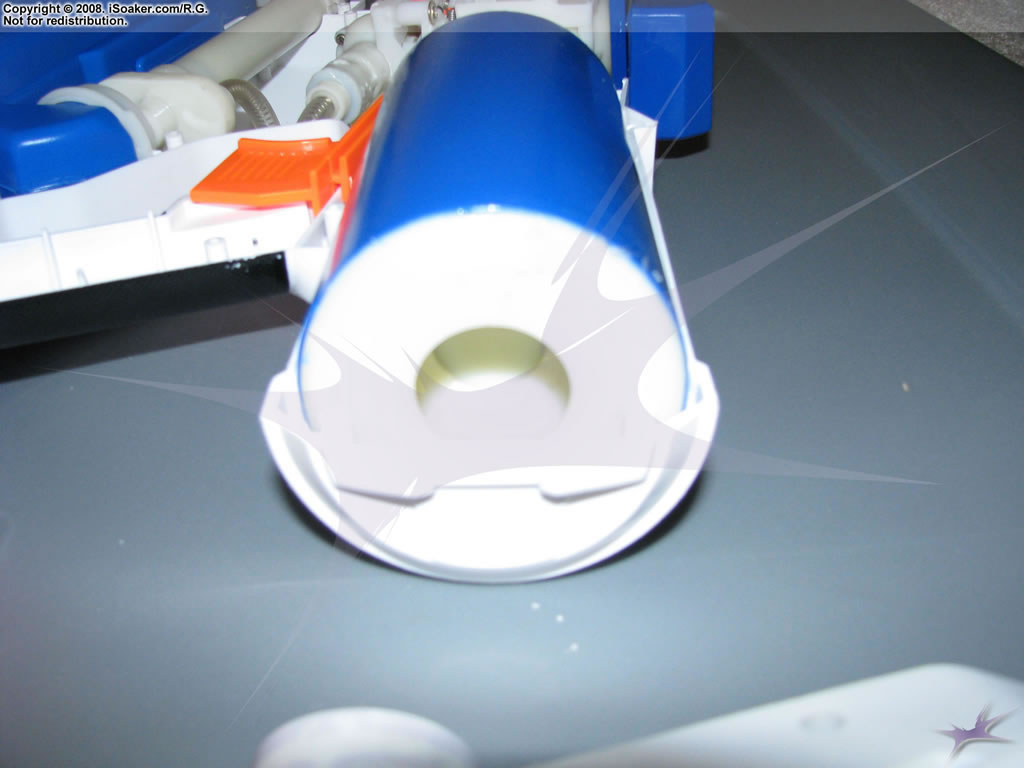

Rear side of the cylindrical CPS chamber. |

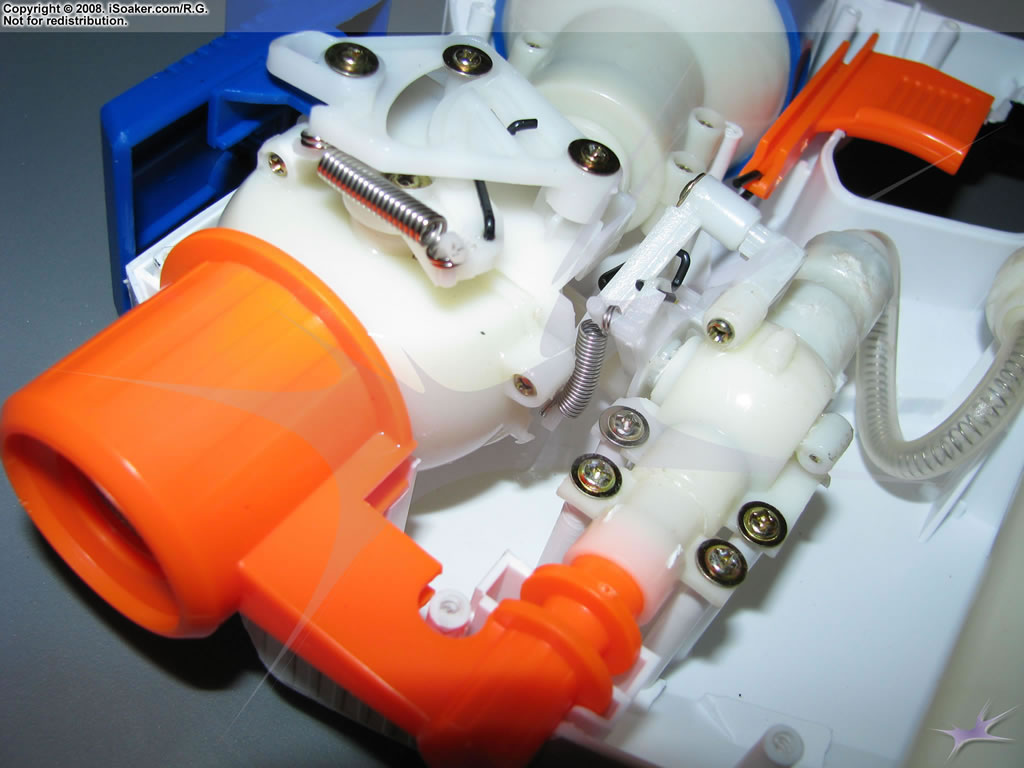

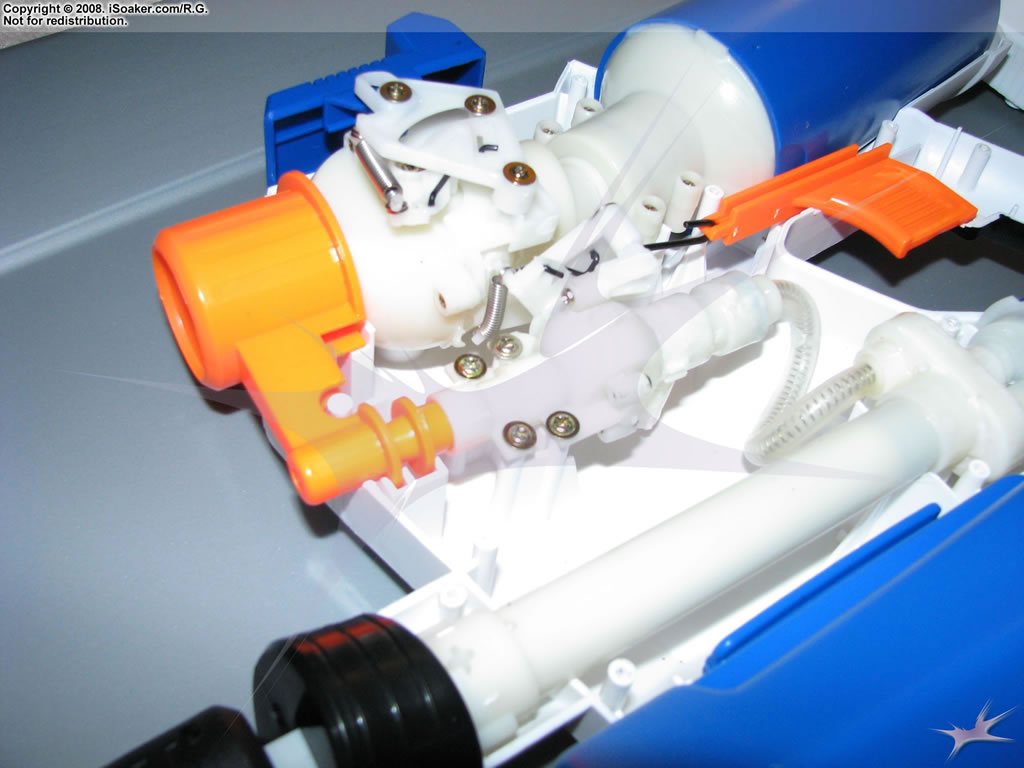

Closer view of nozzle valve assemblies. |

Closer view of nozzle valve assemblies. |

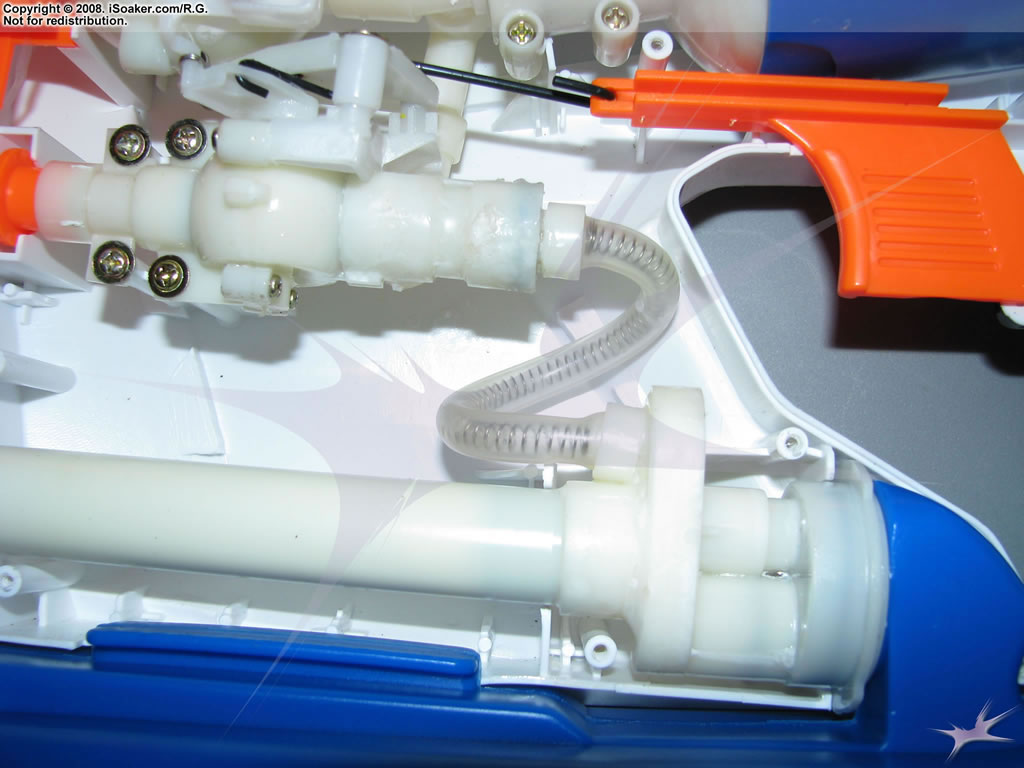

Close-up of pump shaft to pressure chamber tubing. |

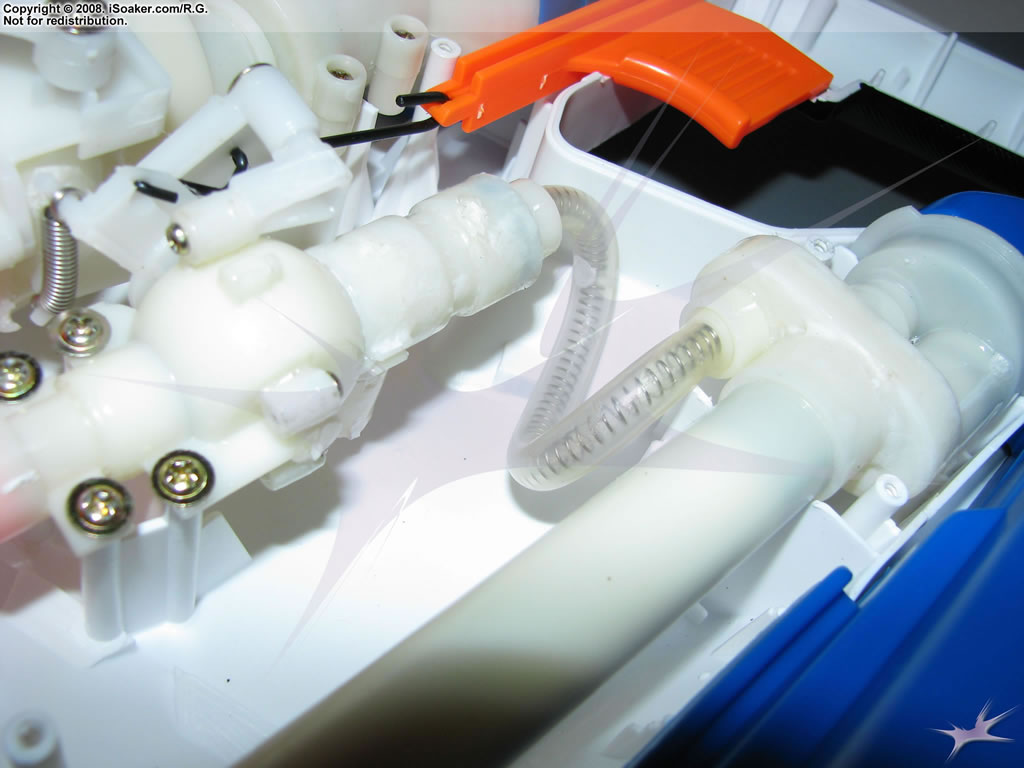

Alternate view of pump shaft to pressure chamber tubing. |

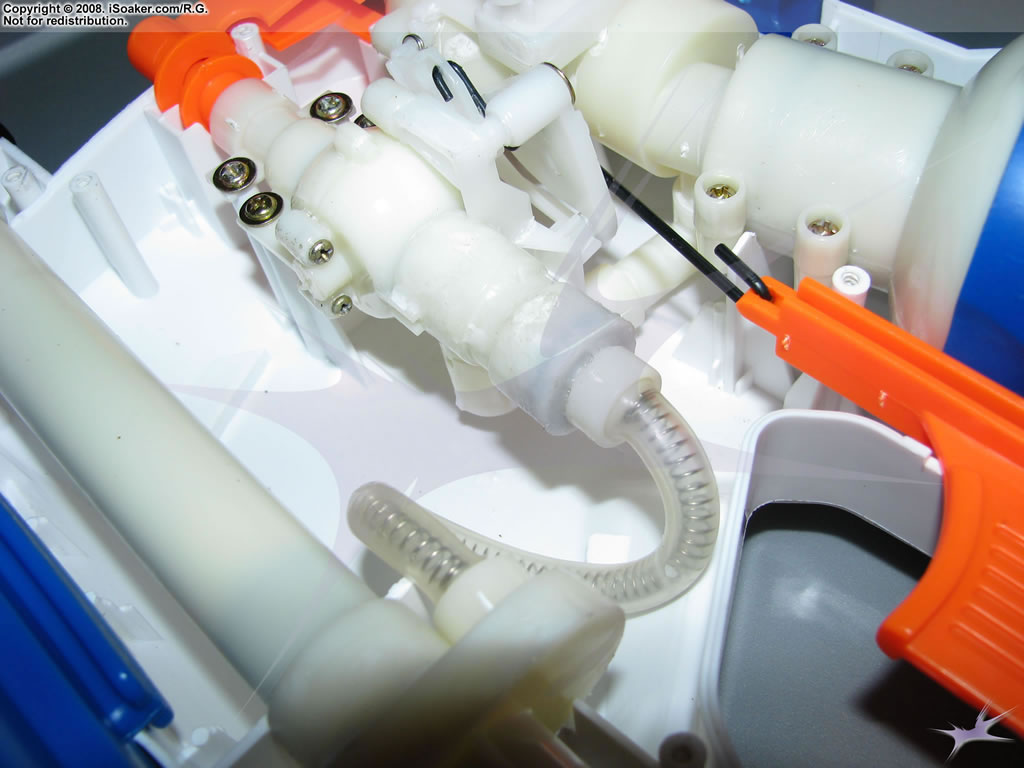

Side view of pump shaft to pressure chamber tubing. |

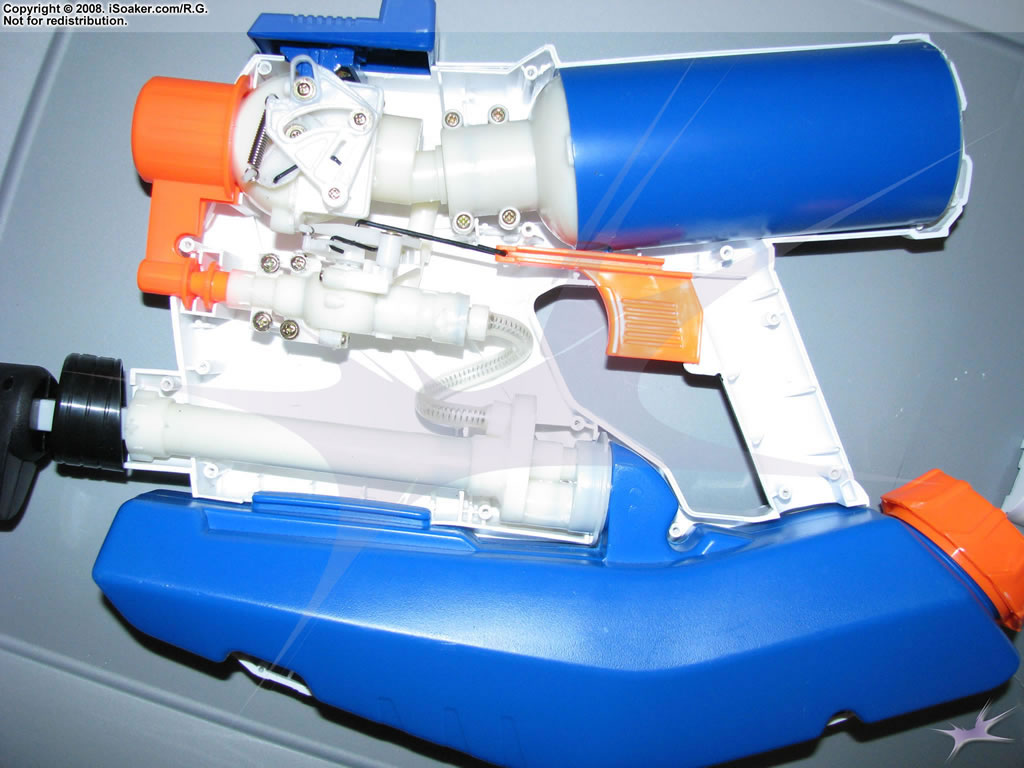

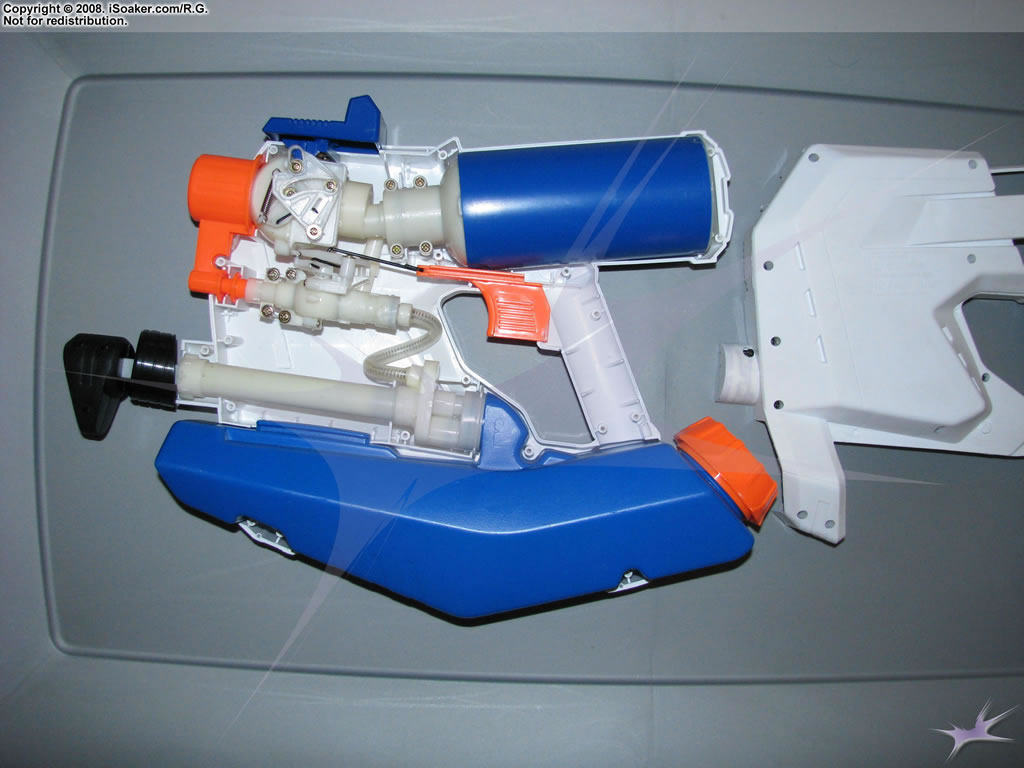

One final side view of entire Super Soaker Arctic Blast internals. |
