Tech - Super Soaker Hydro Blitz Internals .:

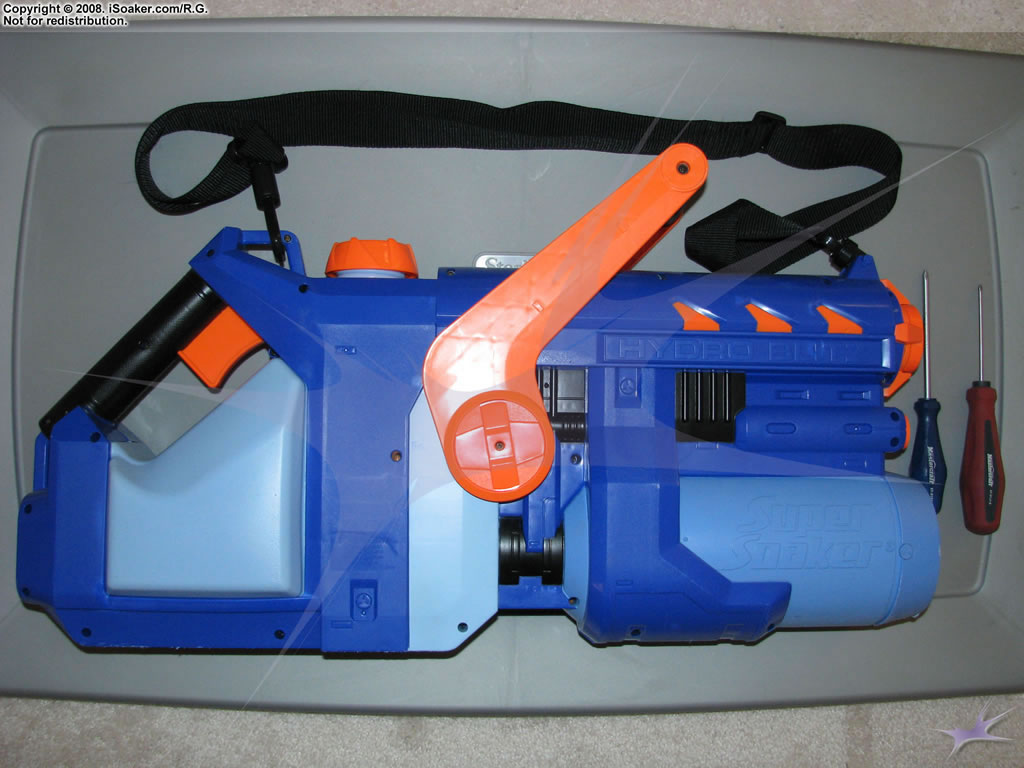

Unopened Super Soaker Hydro Blitz	Left-side pump side-cap removed

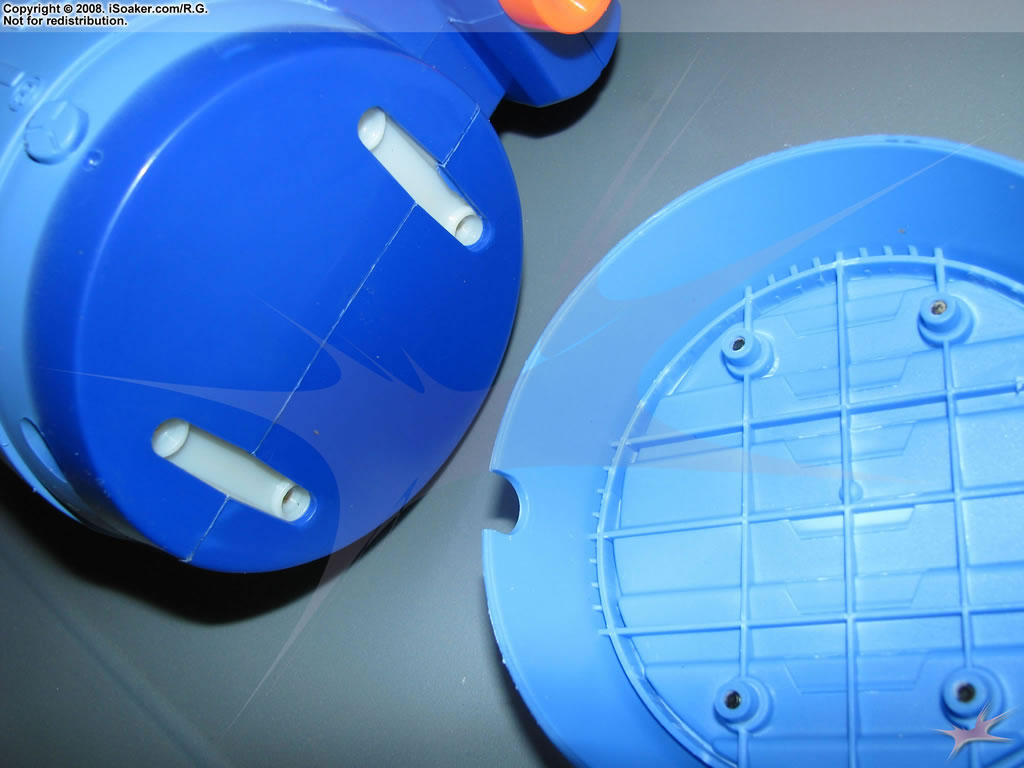

	Right-side pump side-cap removed. Note the two inner screws

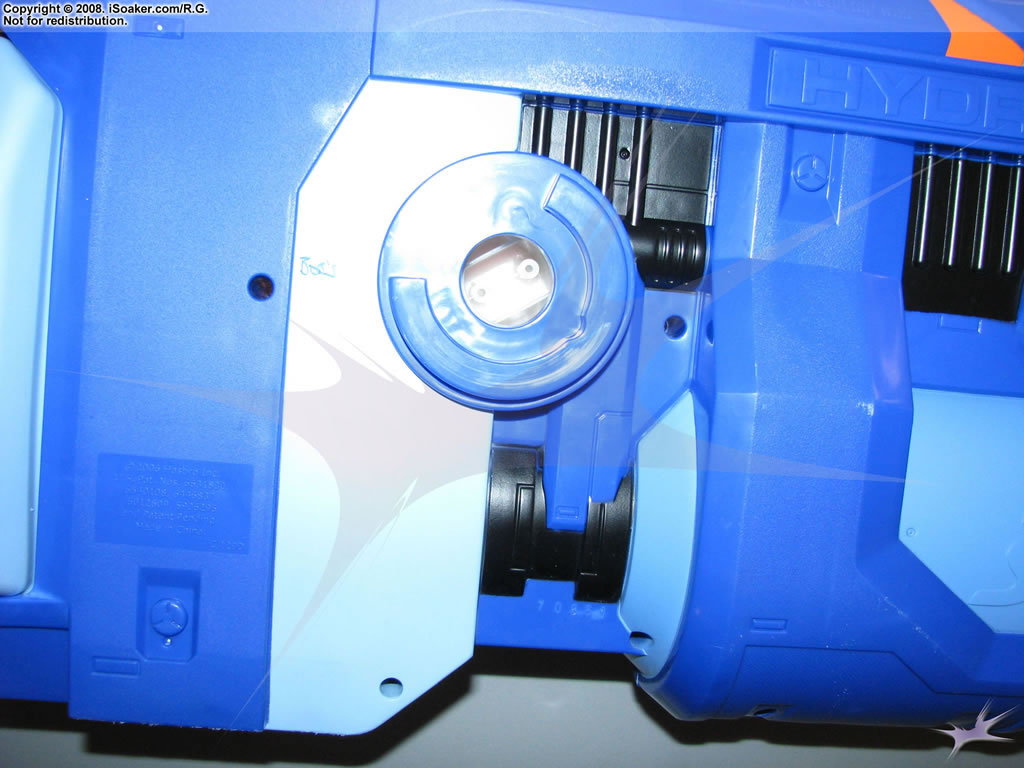

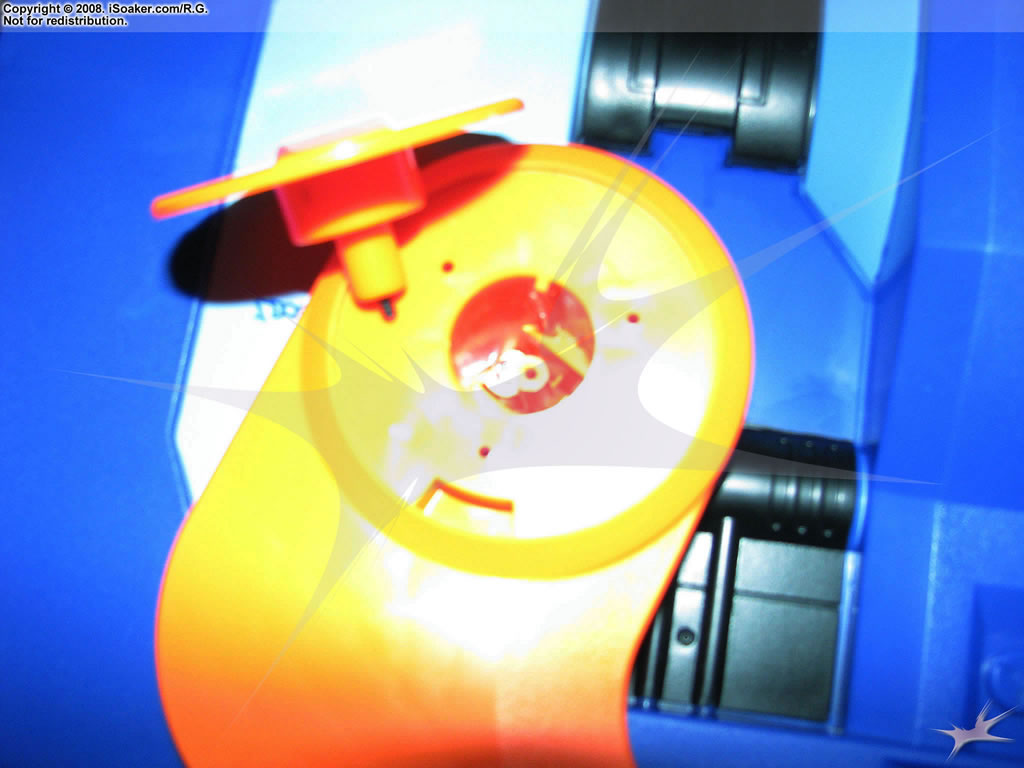

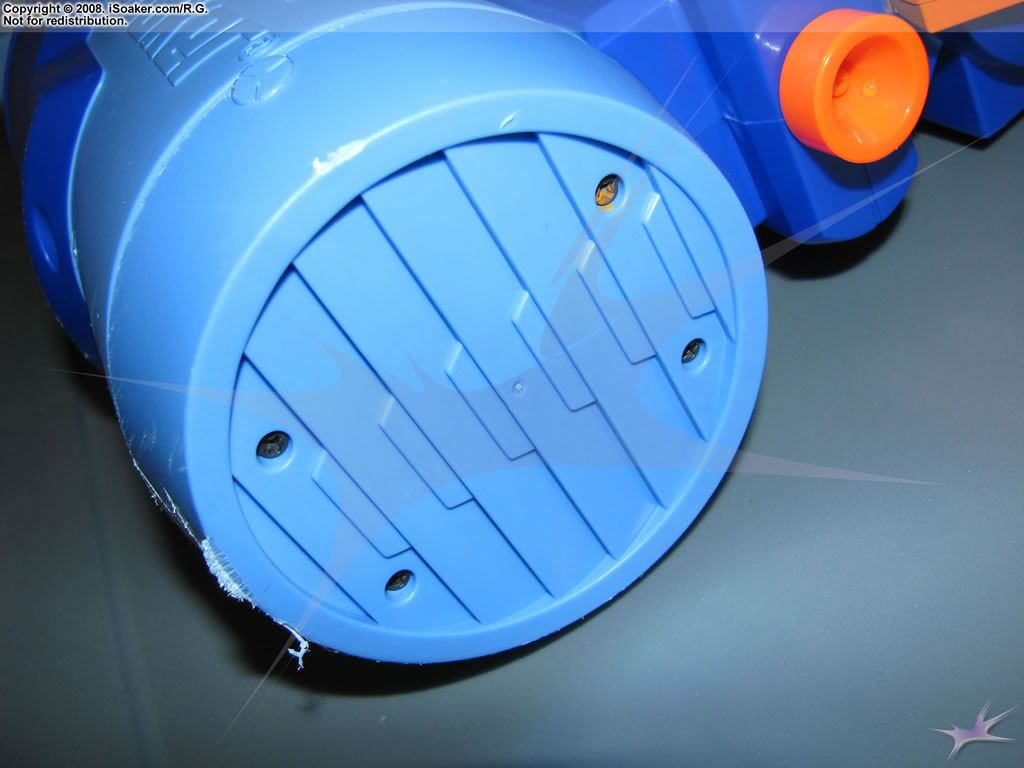

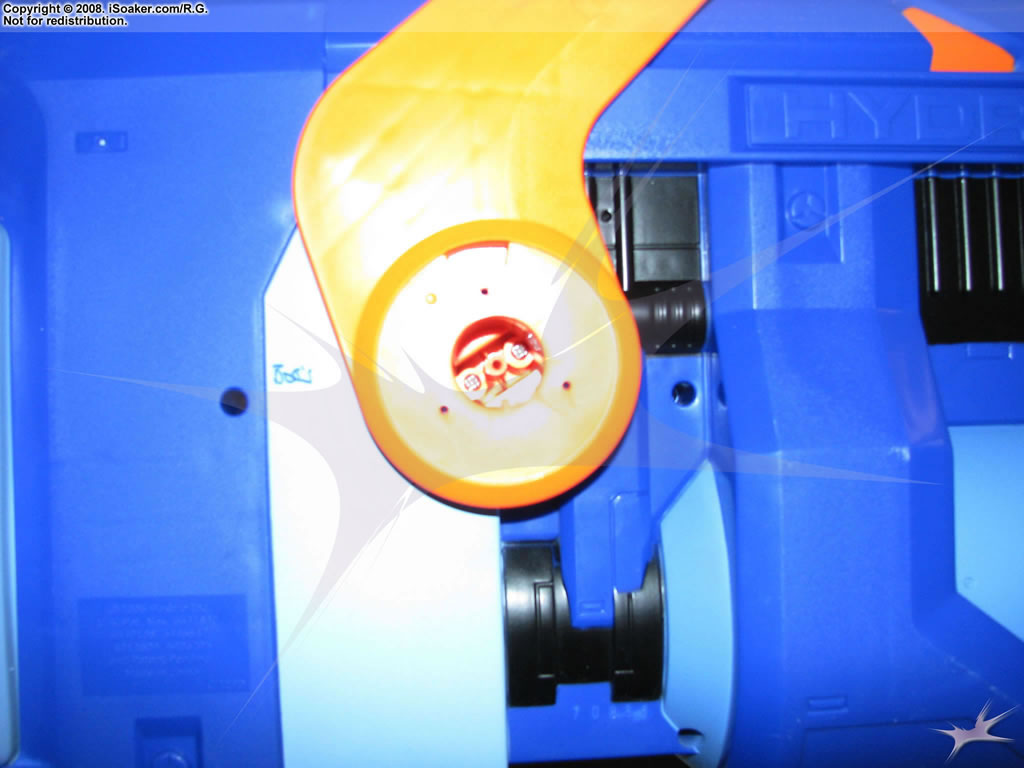

Pump handle rotated away to give clear view of side.	Rotated pump handle position	Front cap showing four screws

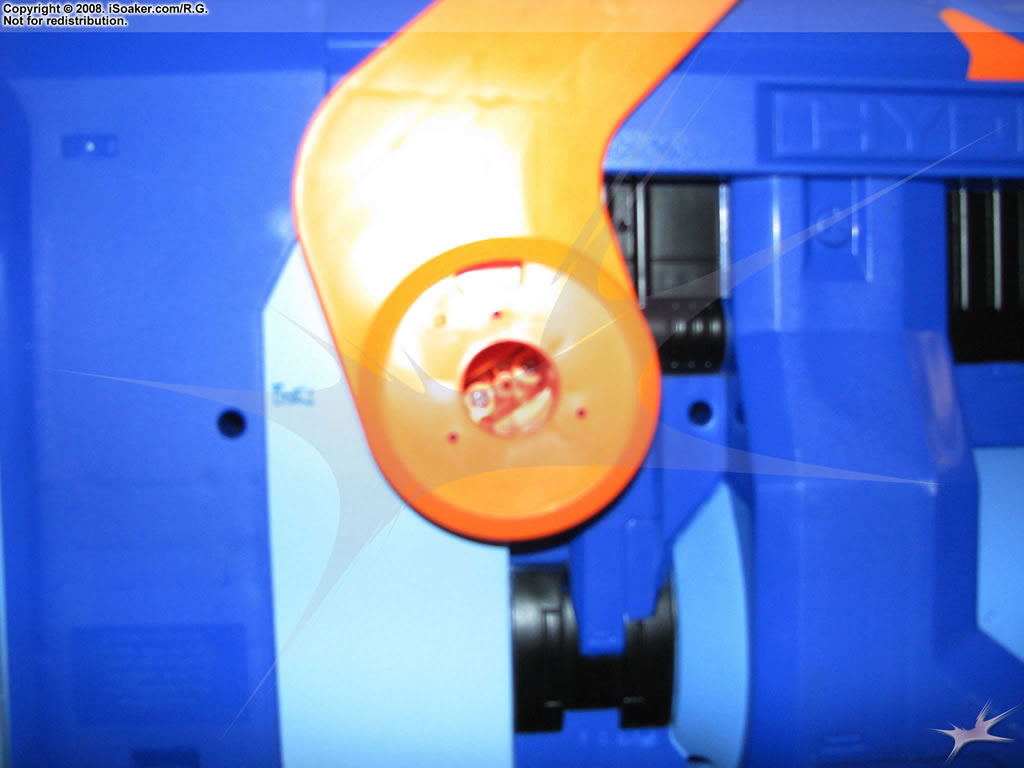

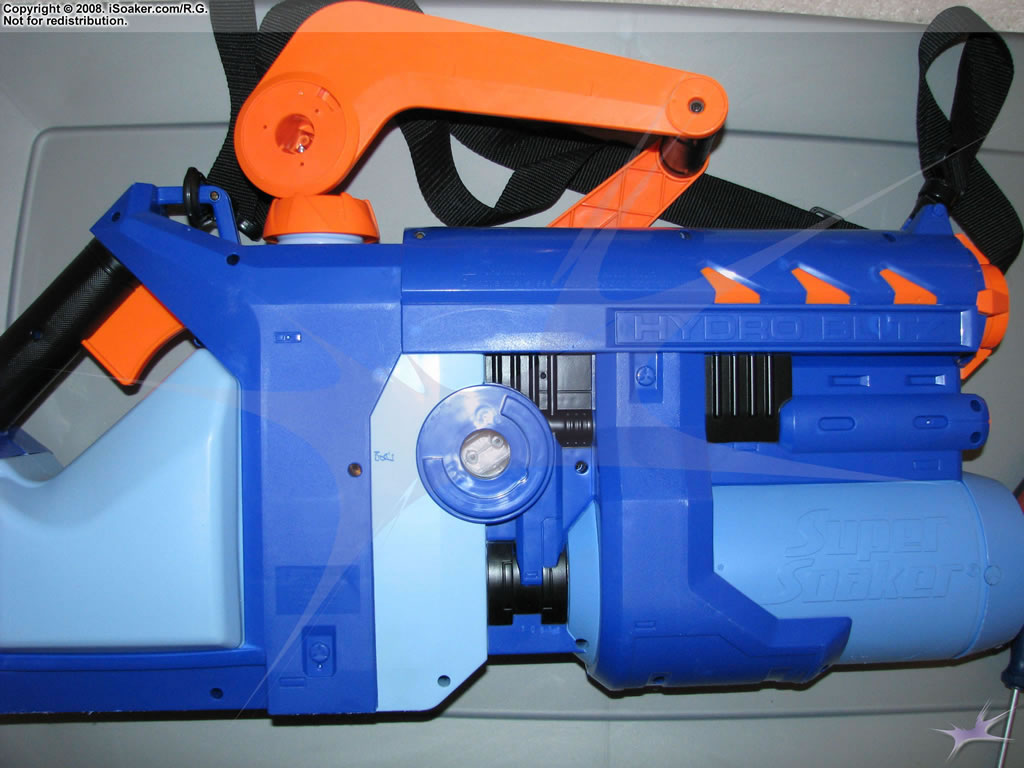

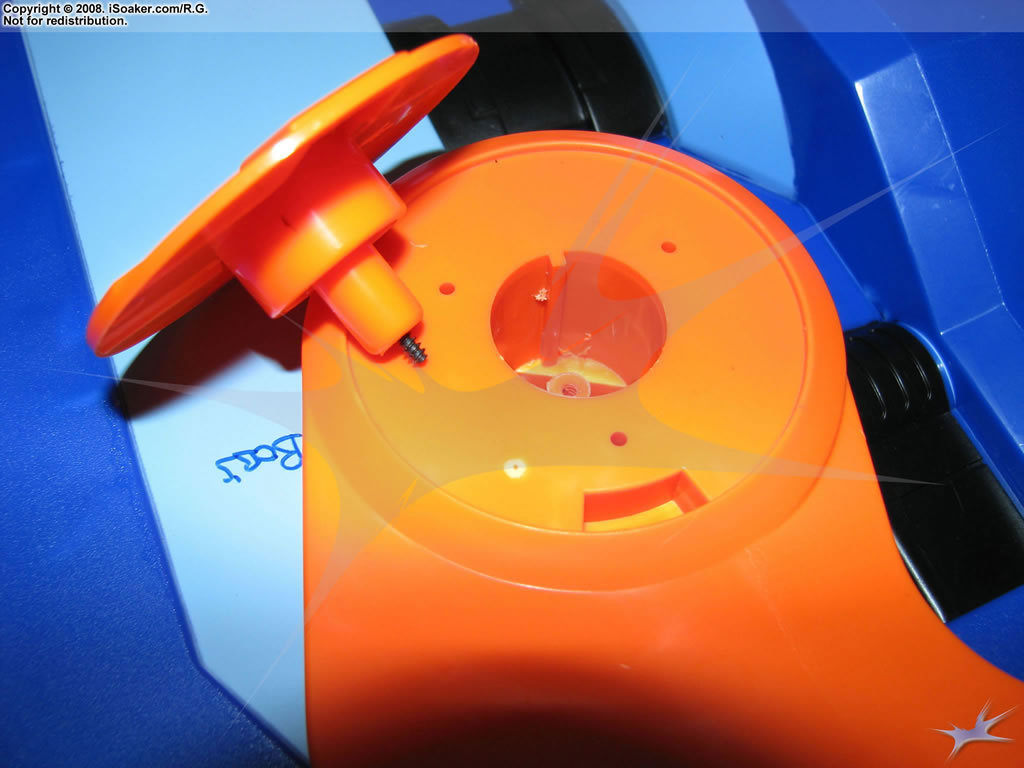

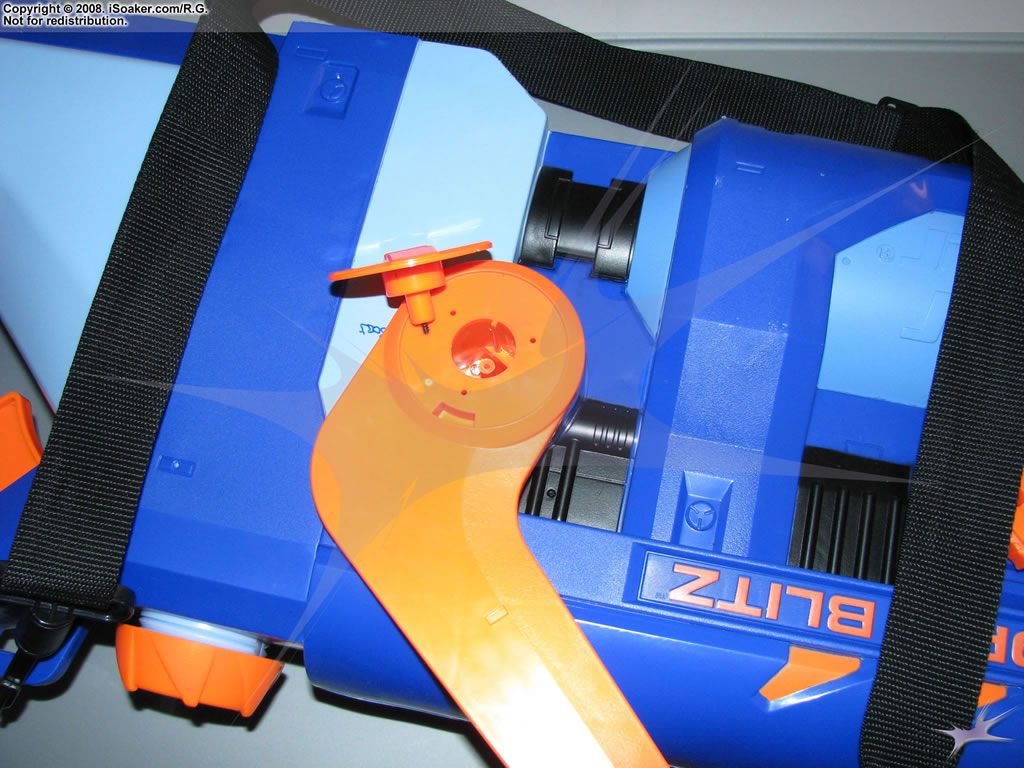

Front cap removed	Casing opened. Notes: nozzle selector knob had to be removed. As well, side that opens is the opposite side to where the screw holes are!	Closer view of internal set-up.

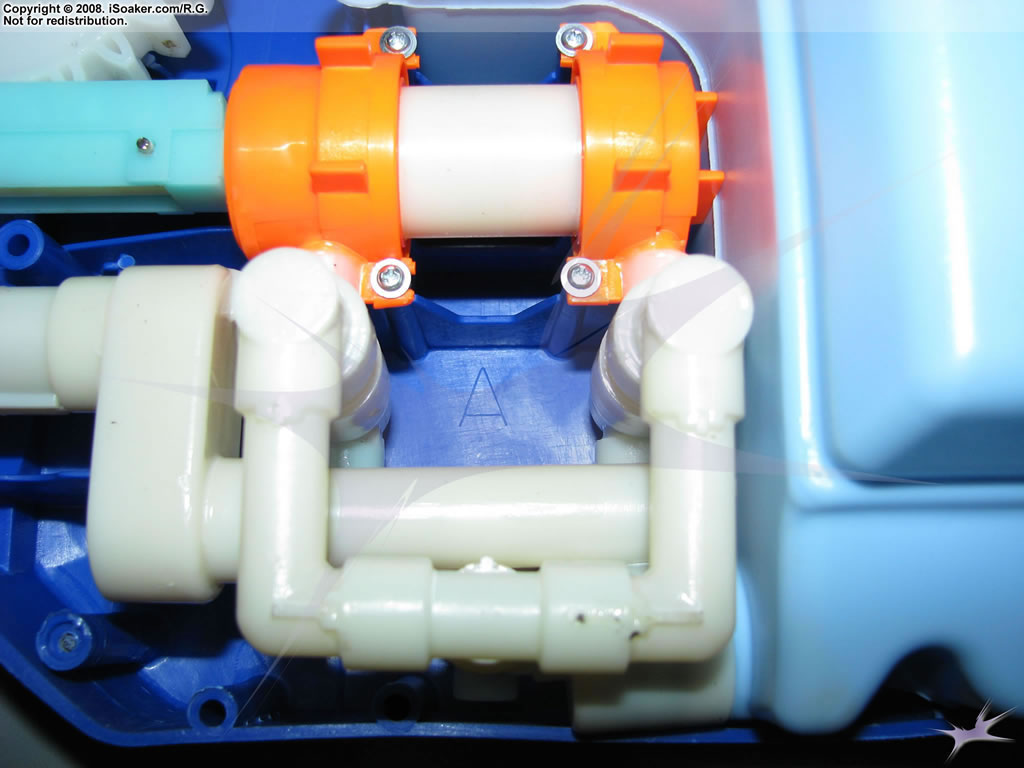

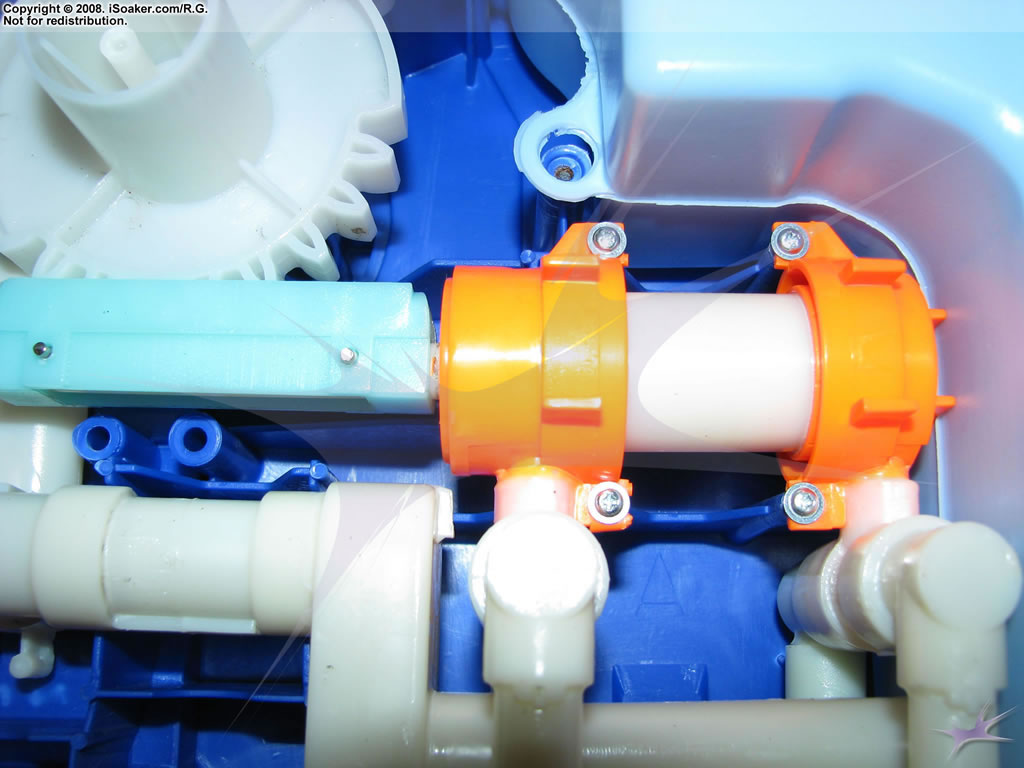

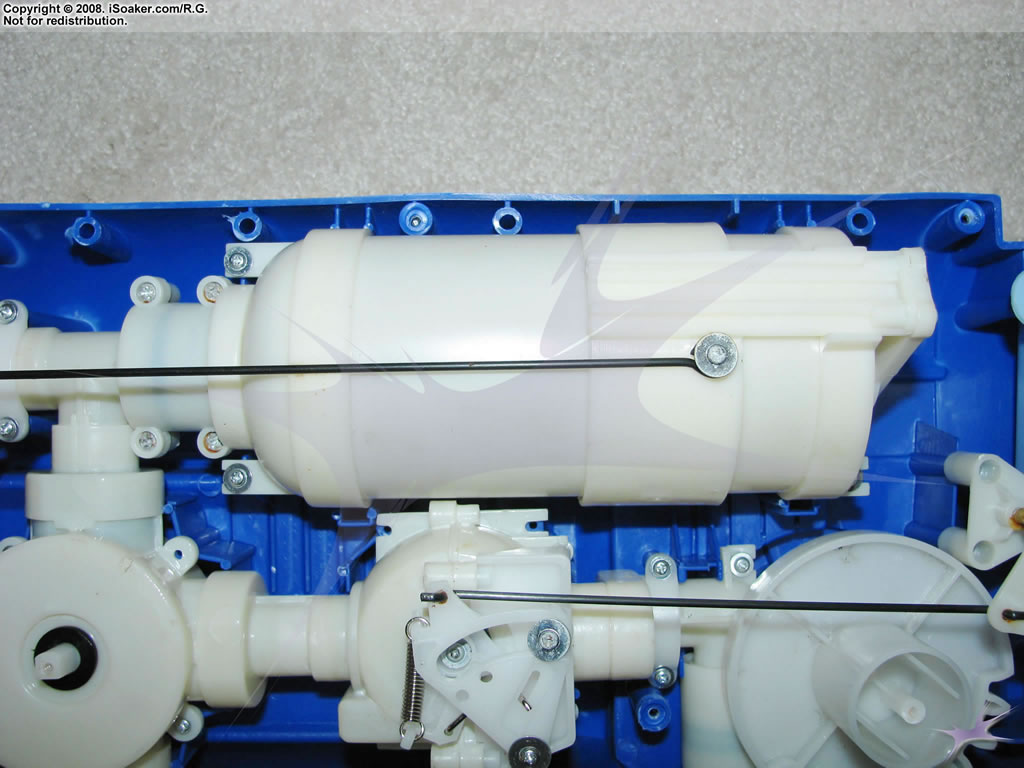

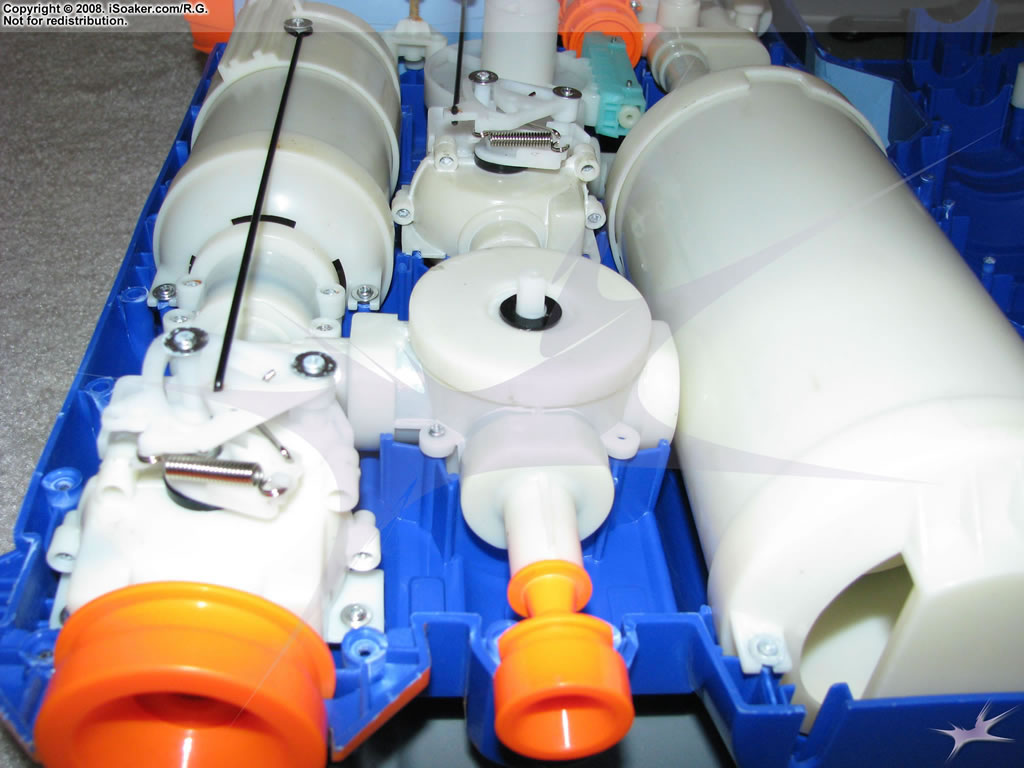

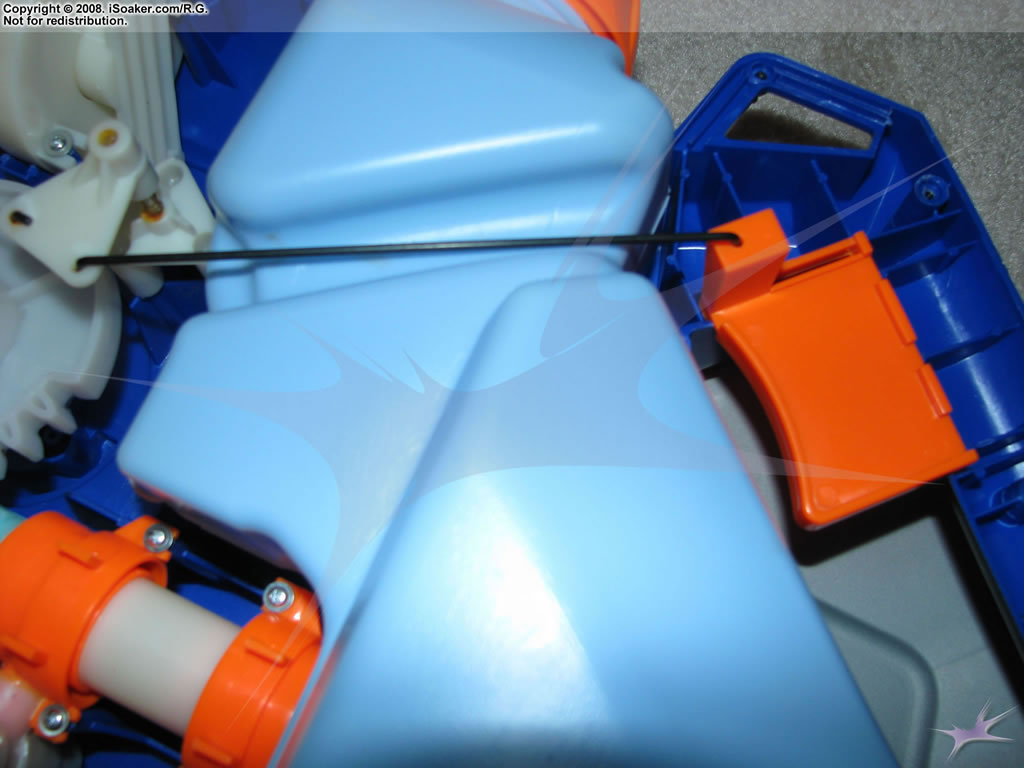

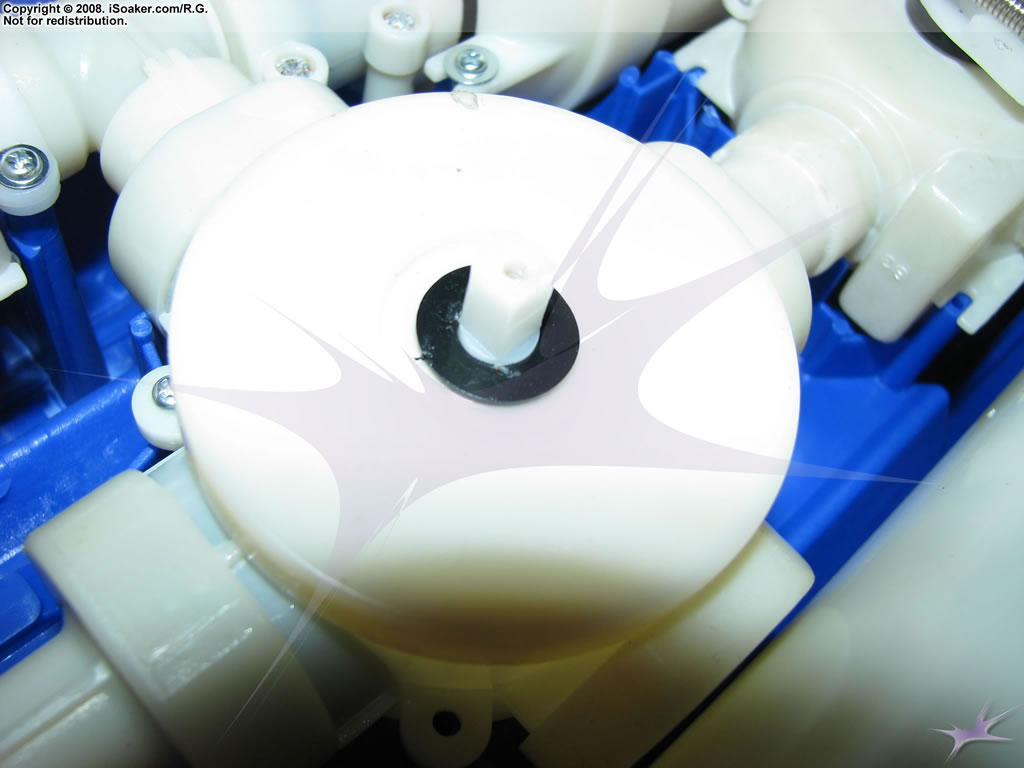

Close up of internal pump mechanism	Bi-directional pump and check-valve assembly.	Trigger rod system passing by the reservoir.

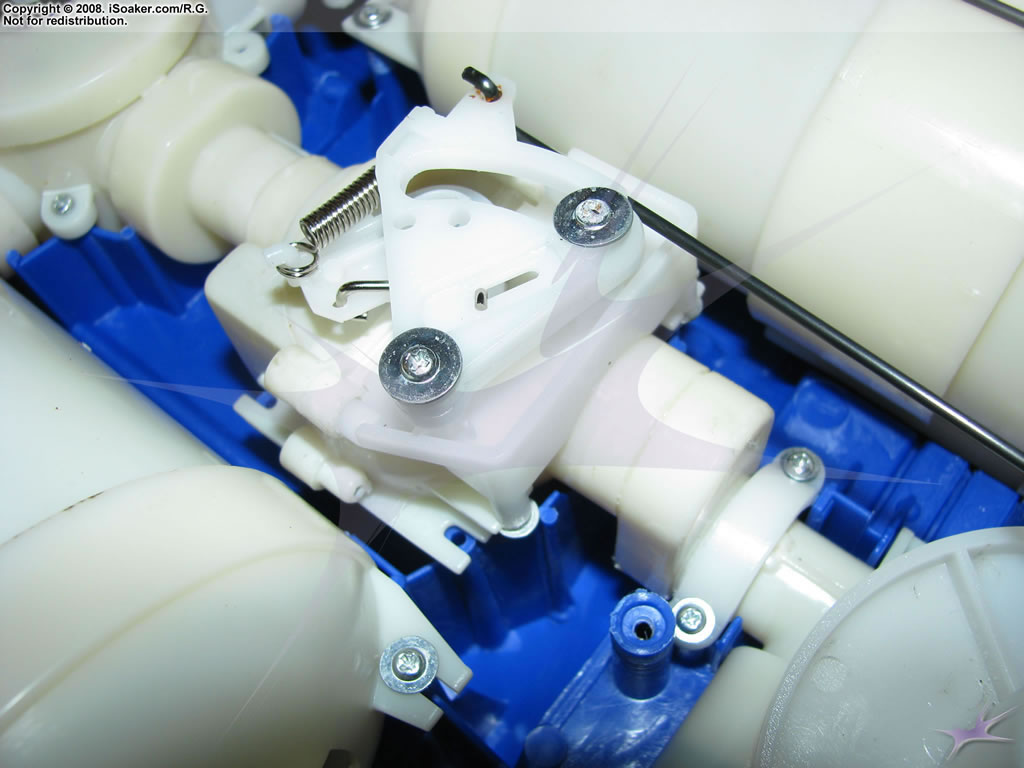

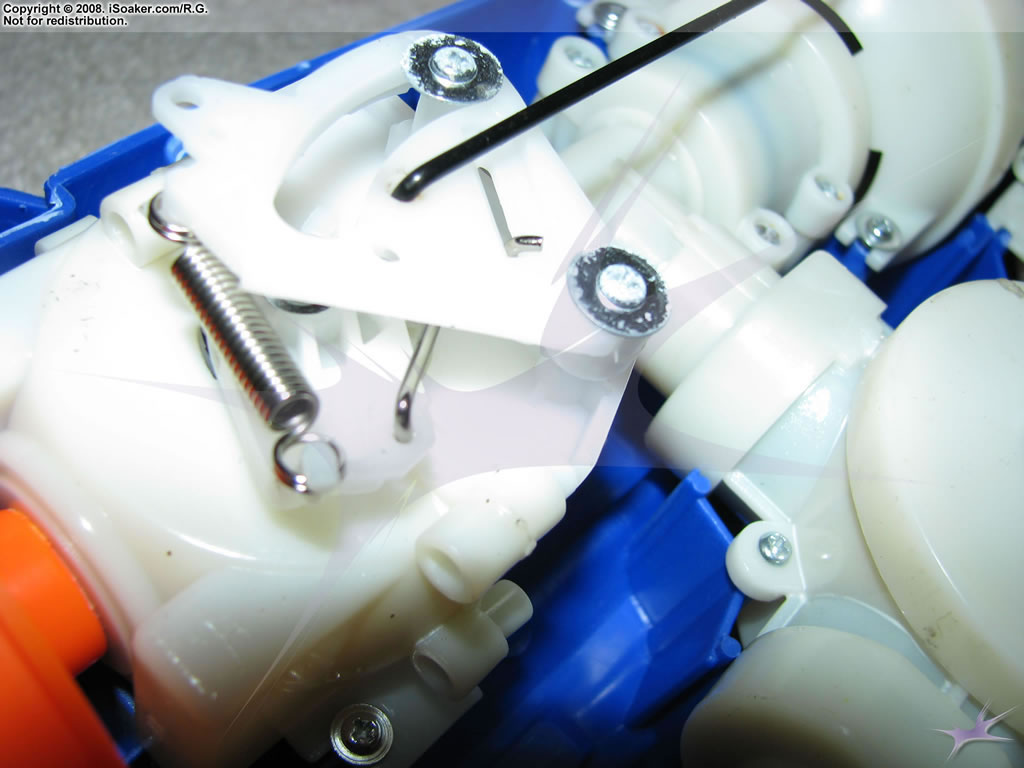

Primary CPS-chamber. Nozzle selector valve visible.	Manually-controlled Max-D trigger system.

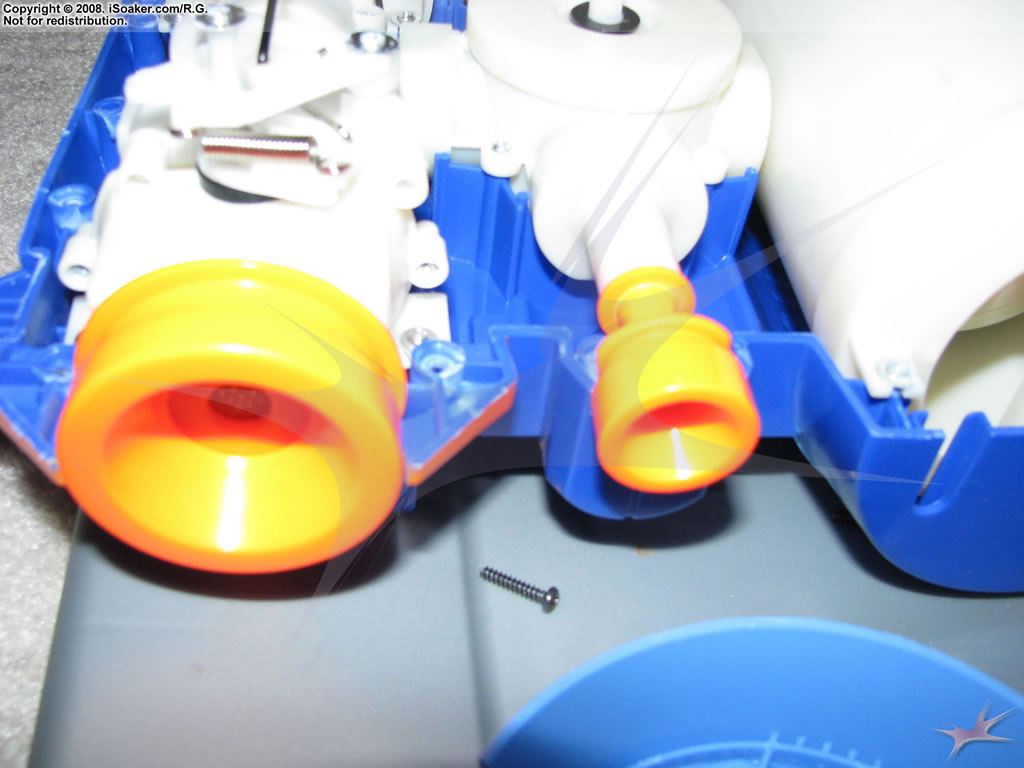

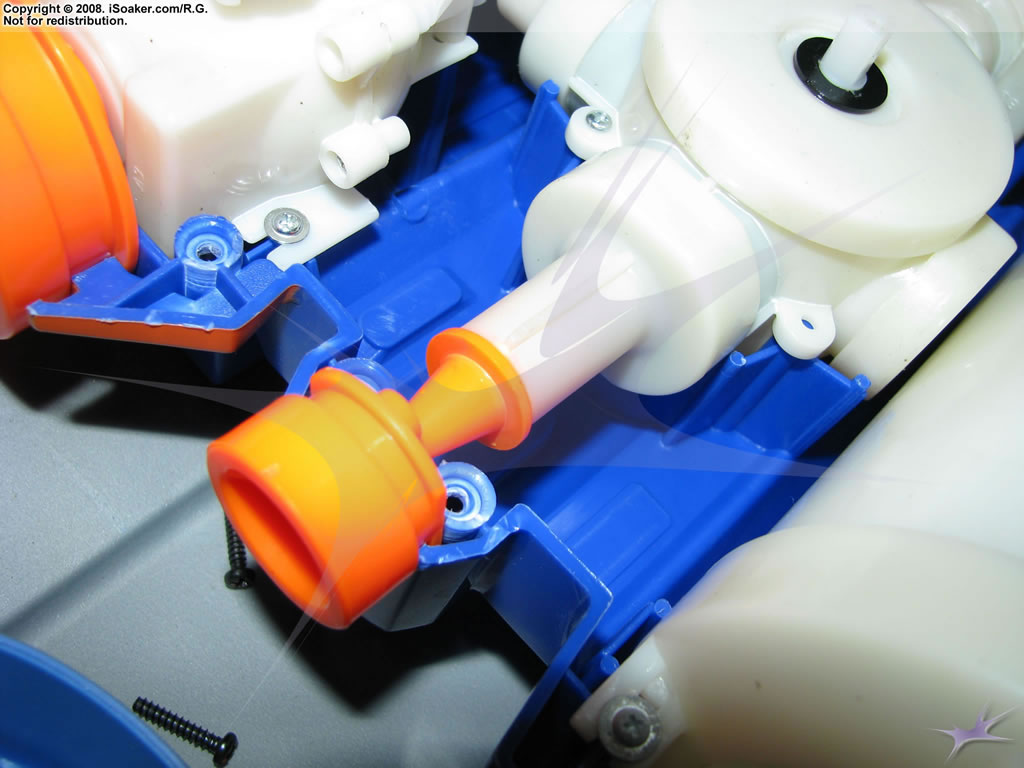

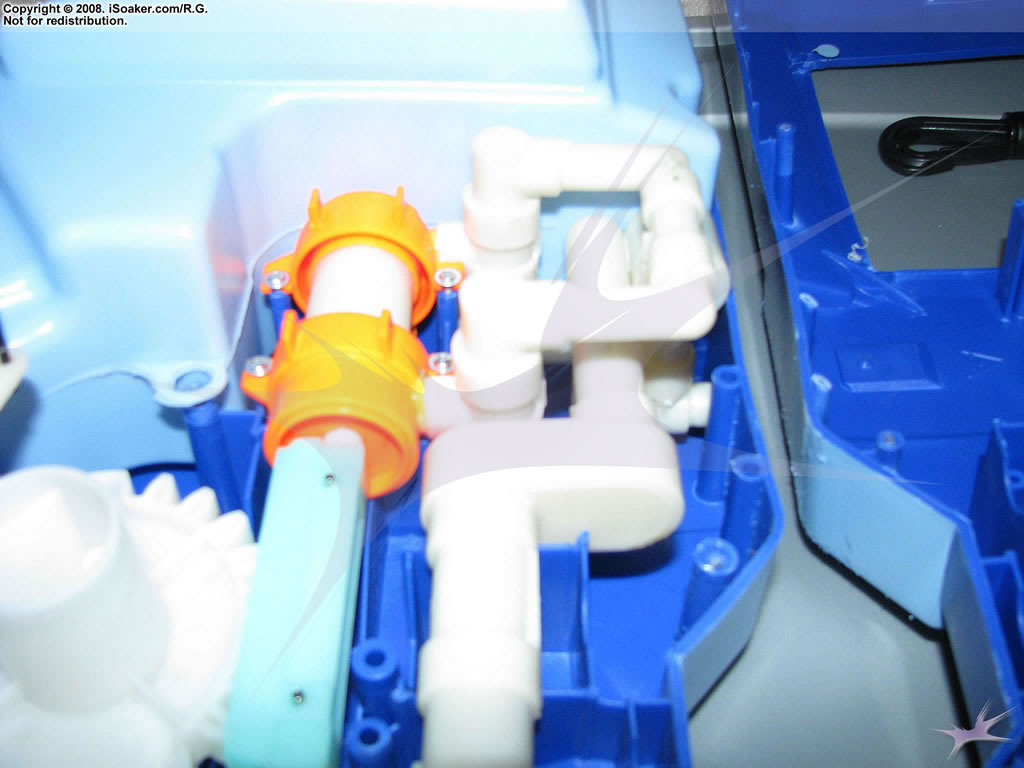

Nozzle selector valve.	Stream nozzle.	"Blitz" nozzle Max-D valve system.

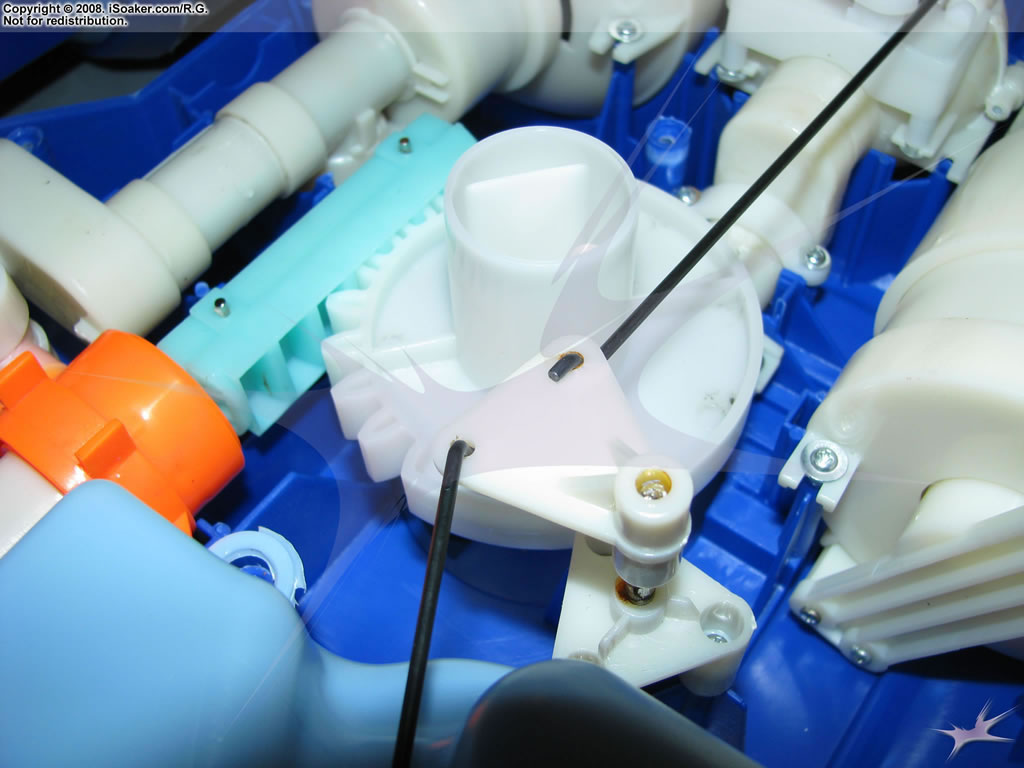

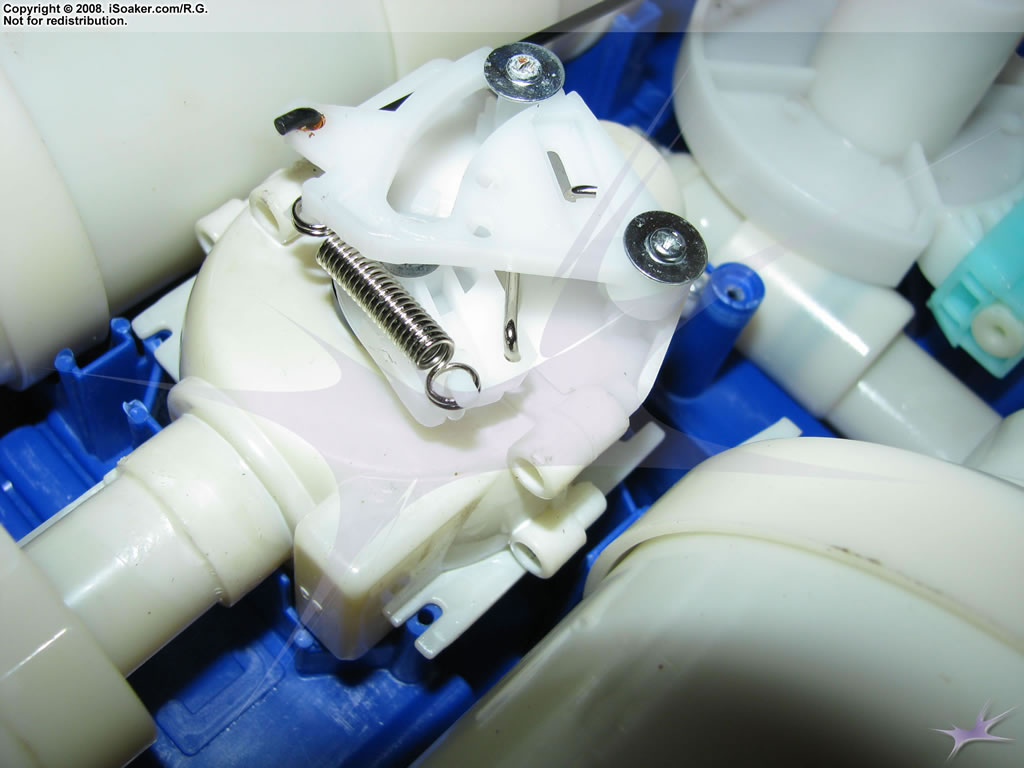

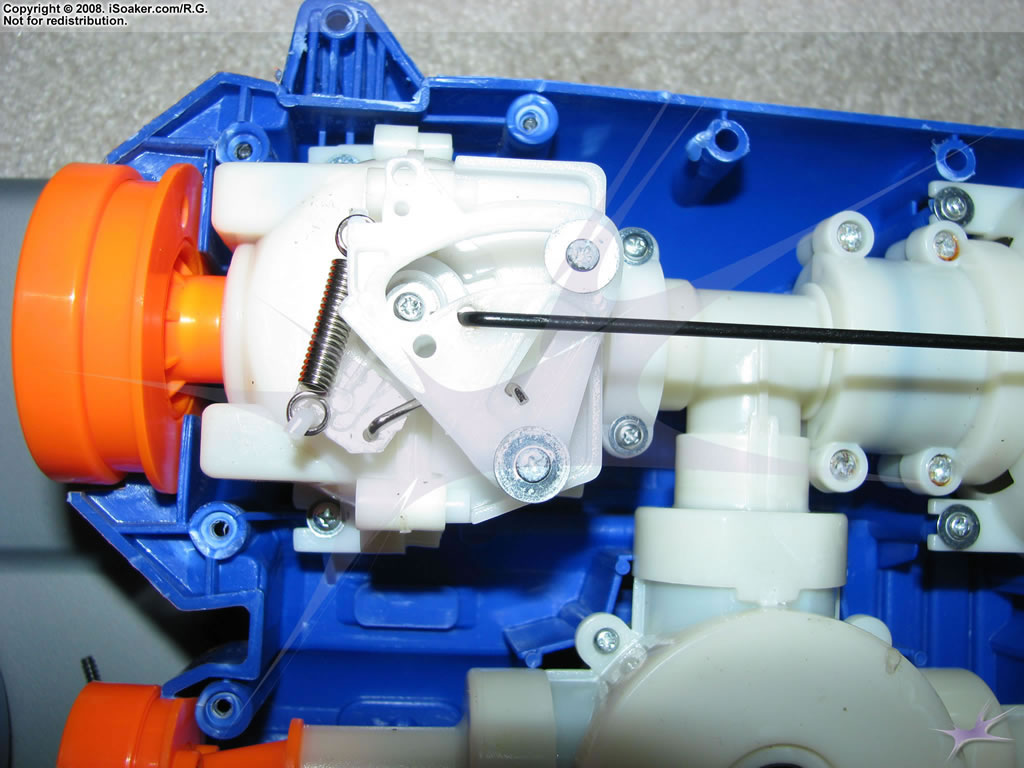

"Blitz" nozzle valve activated by expansions of upper CPS-chamber.	Upper CPS-chamber view.	Trigger rod pull-direction adapter.

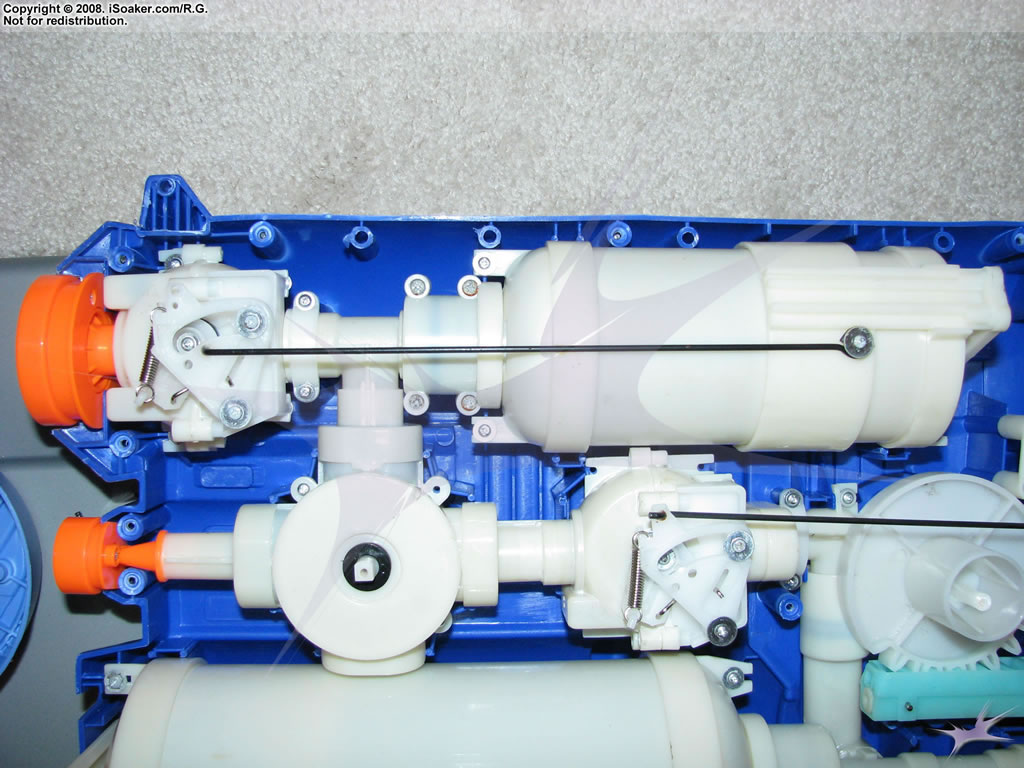

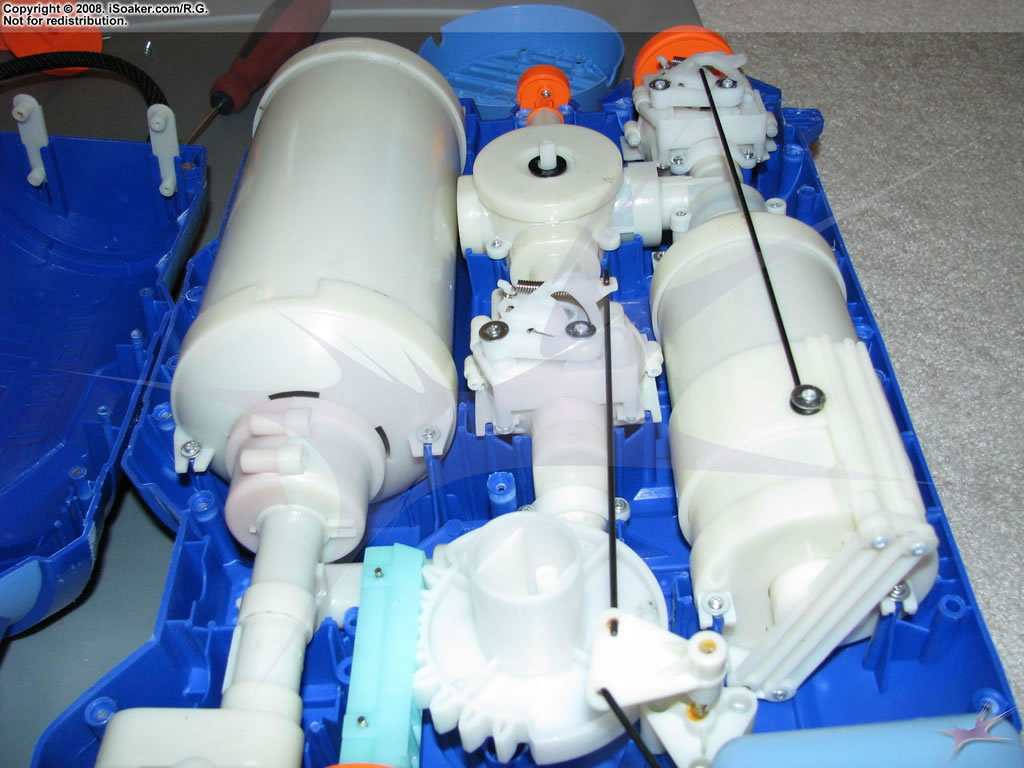

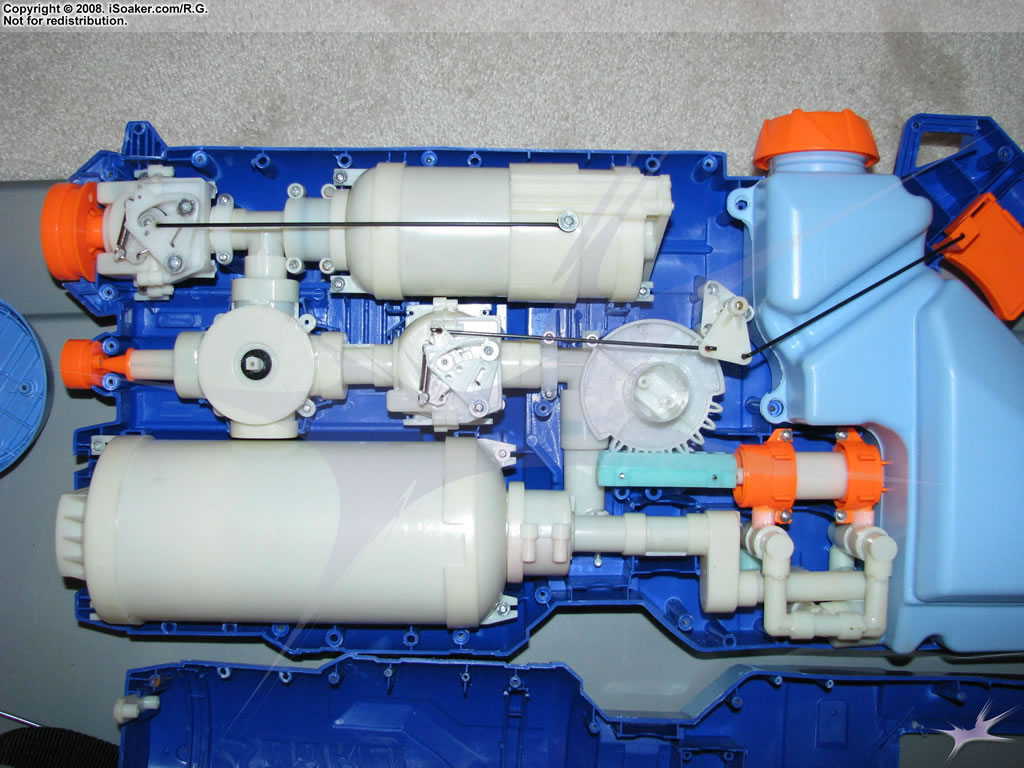

1/2 angle view of internals from rear.	Overview of "Blitz" nozzle and pressure chamber.

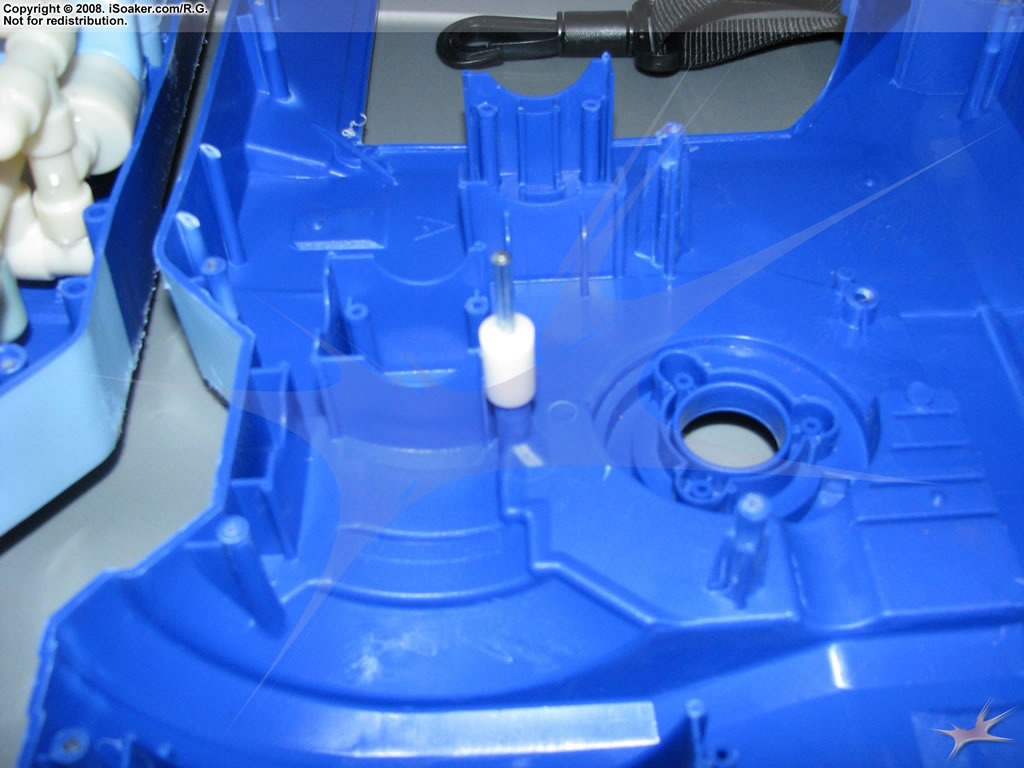

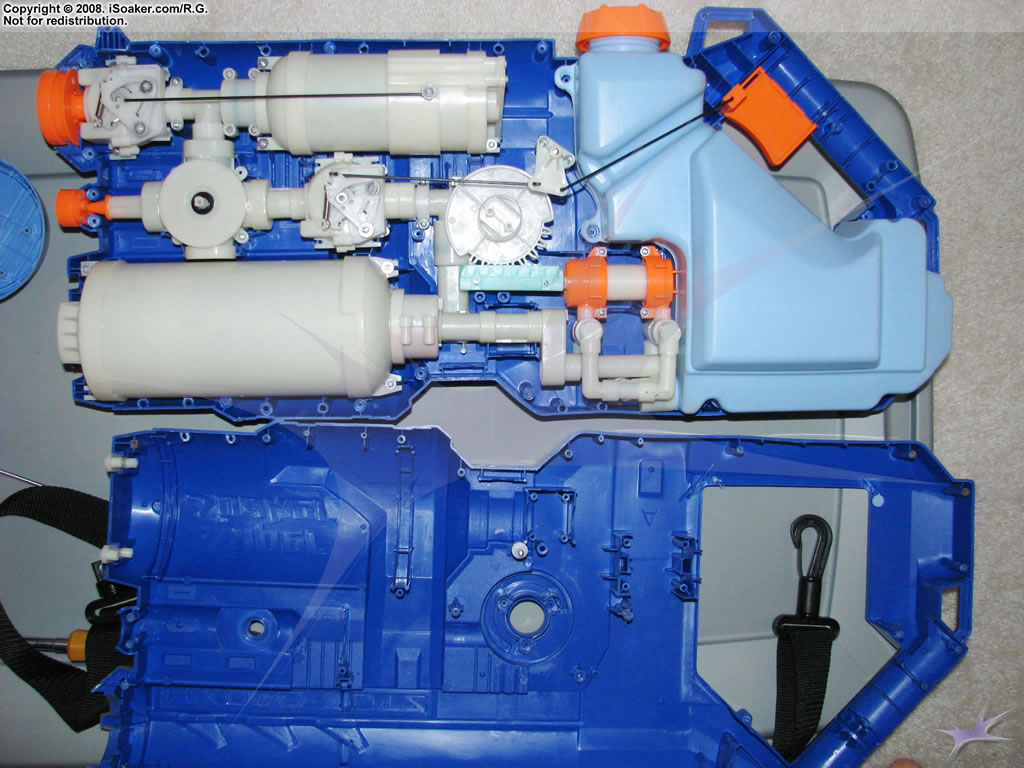

1/2 angle view of internals from front.	Casing side with screw holes.	1/2 angle view of pump and check valve assembly.

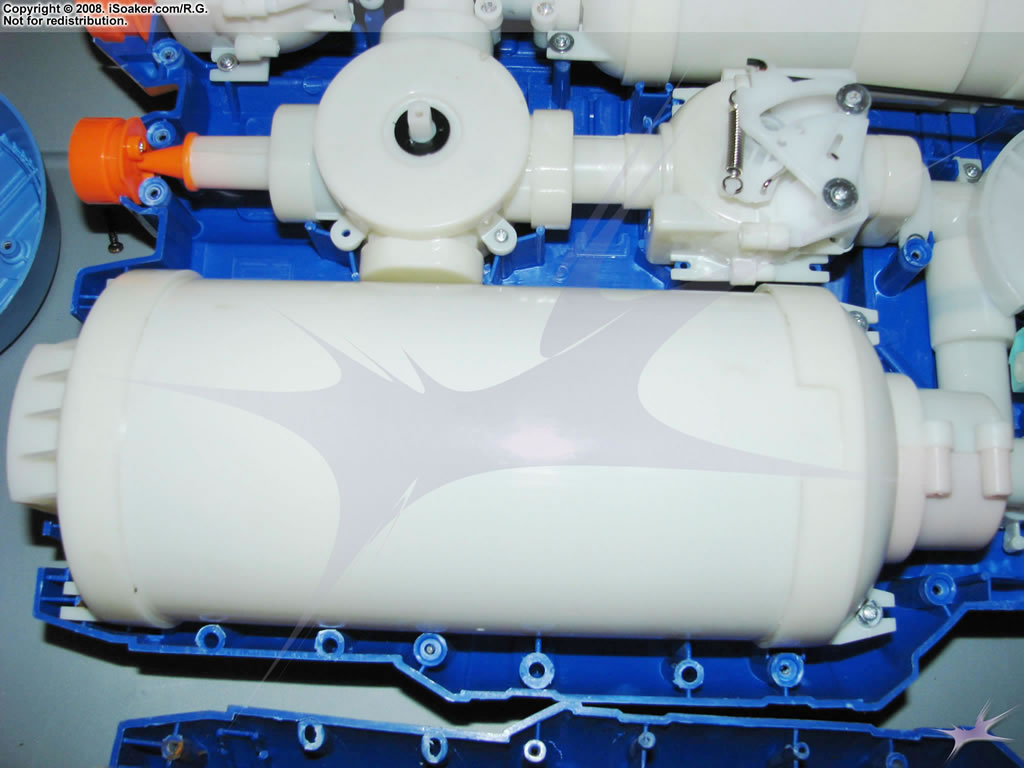

	1/2 angle view of reservoir and trigger valve assembly.
