Tech - Nerf Super Soaker Hydro Cannon Internals .:
Images from iSoaker.com

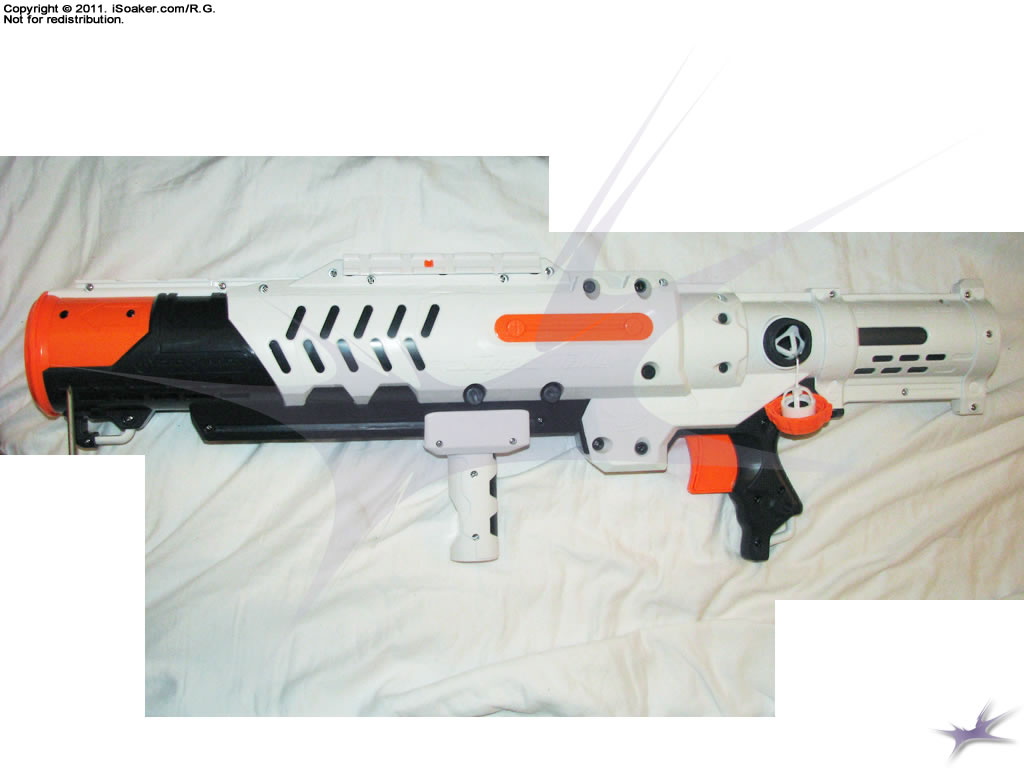

 Unopened blaster showing majority of screw holes (there is one additional screw that needs removing on the opposite side at the back) |

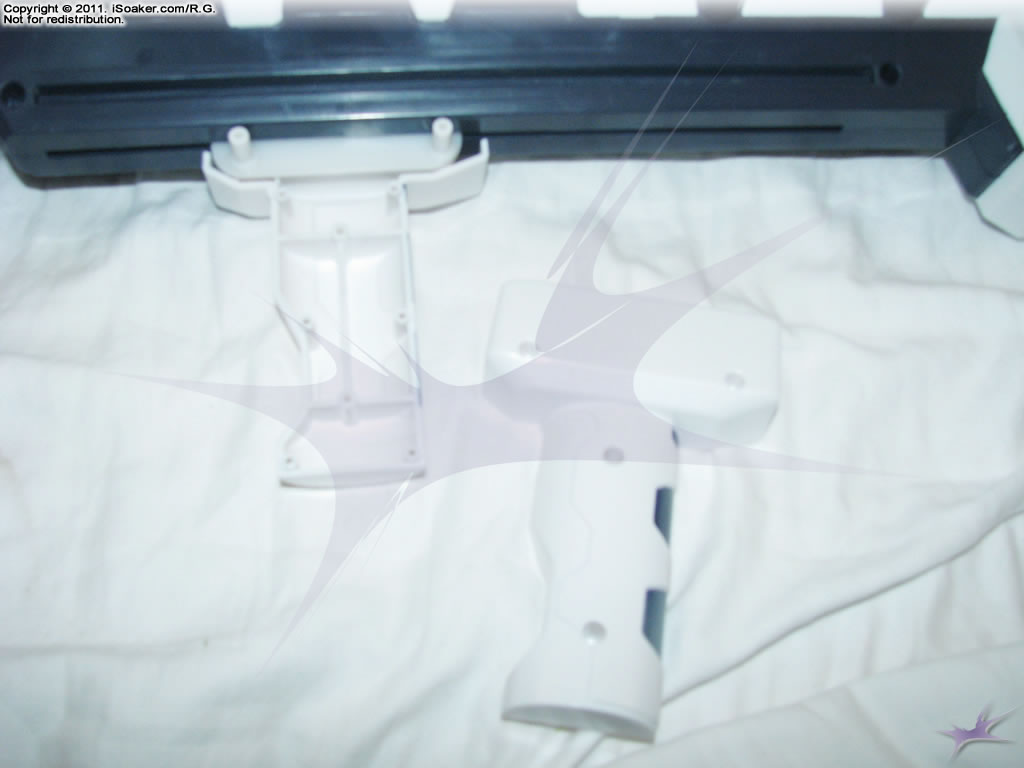

 Pump grip removed |

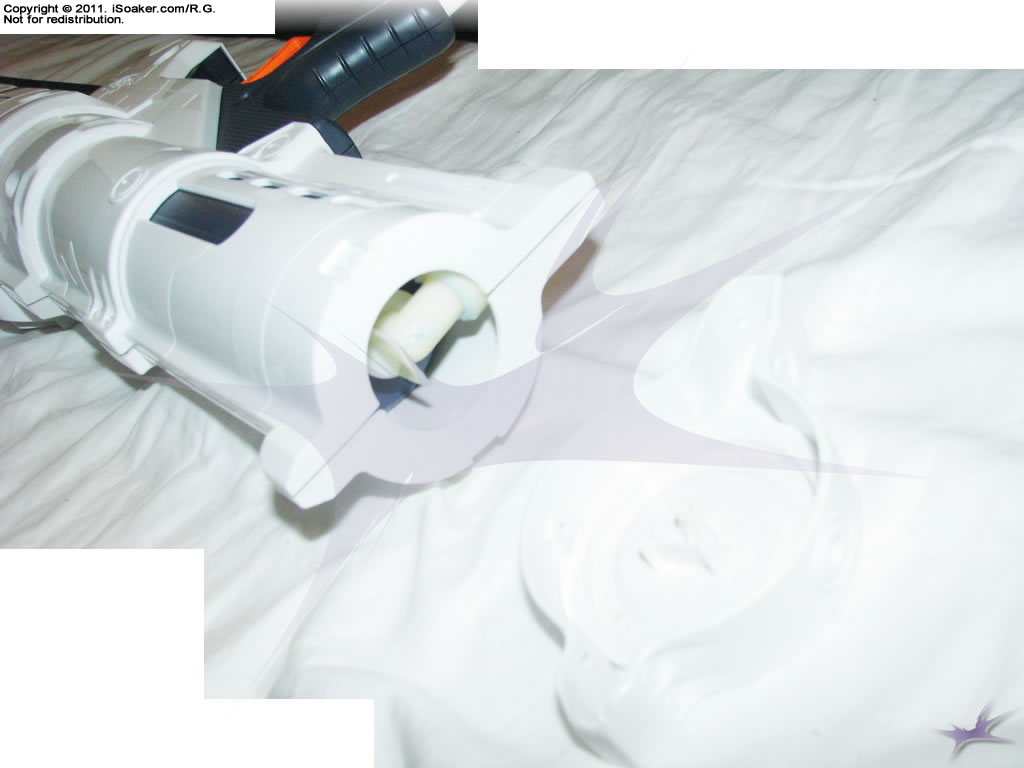

 Back plastic cover removed; reservoir intake connector visible |
 Side casing removed |

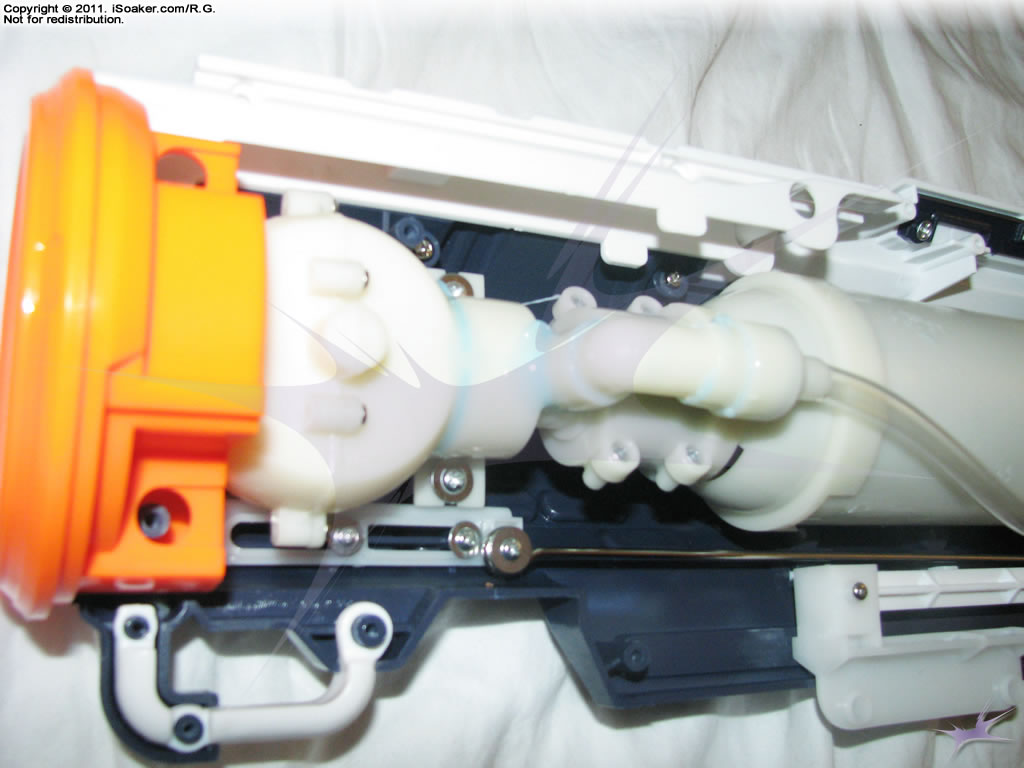

 Detail of nozzle valve assembly and forward portion of CPS chamber |

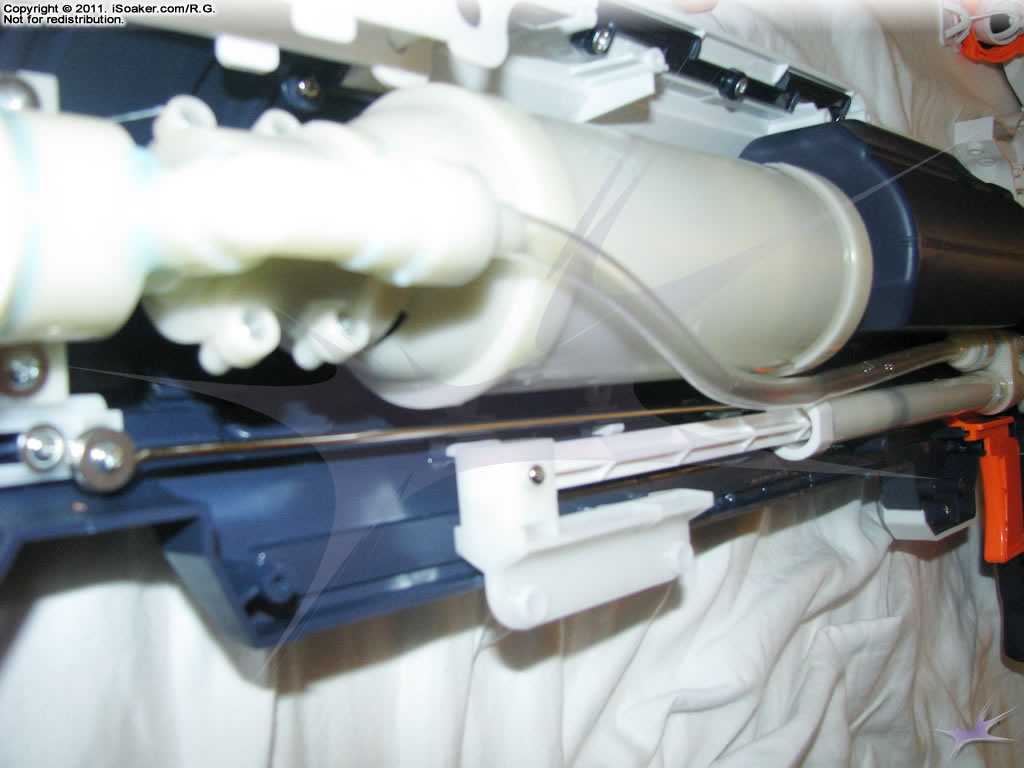

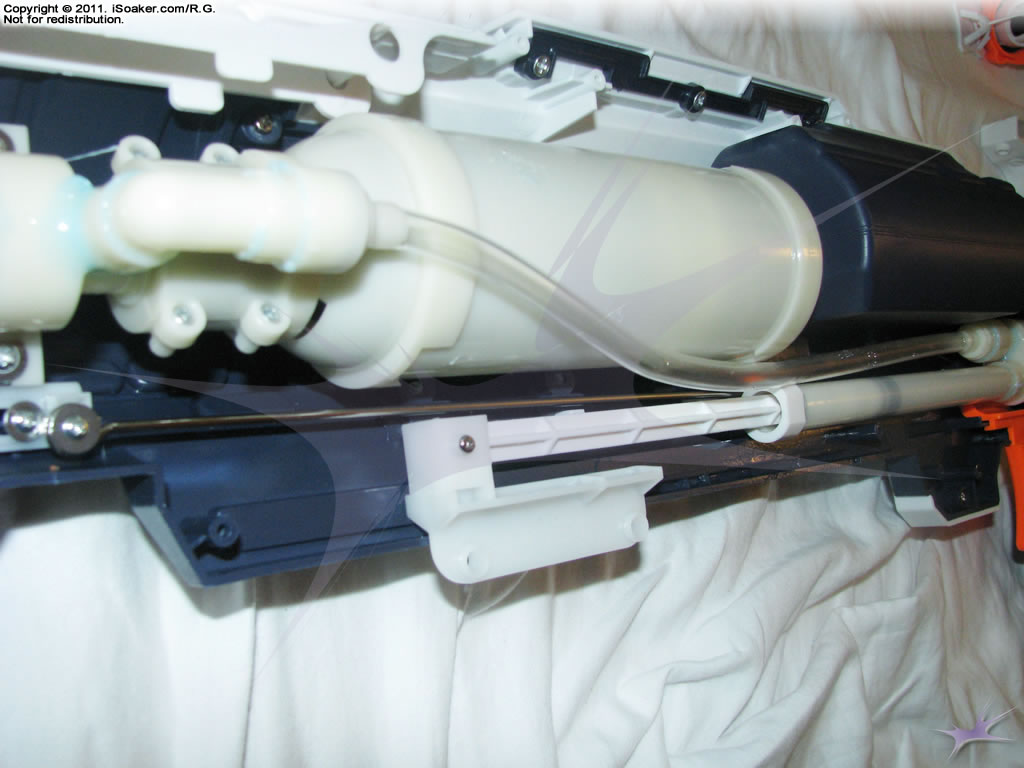

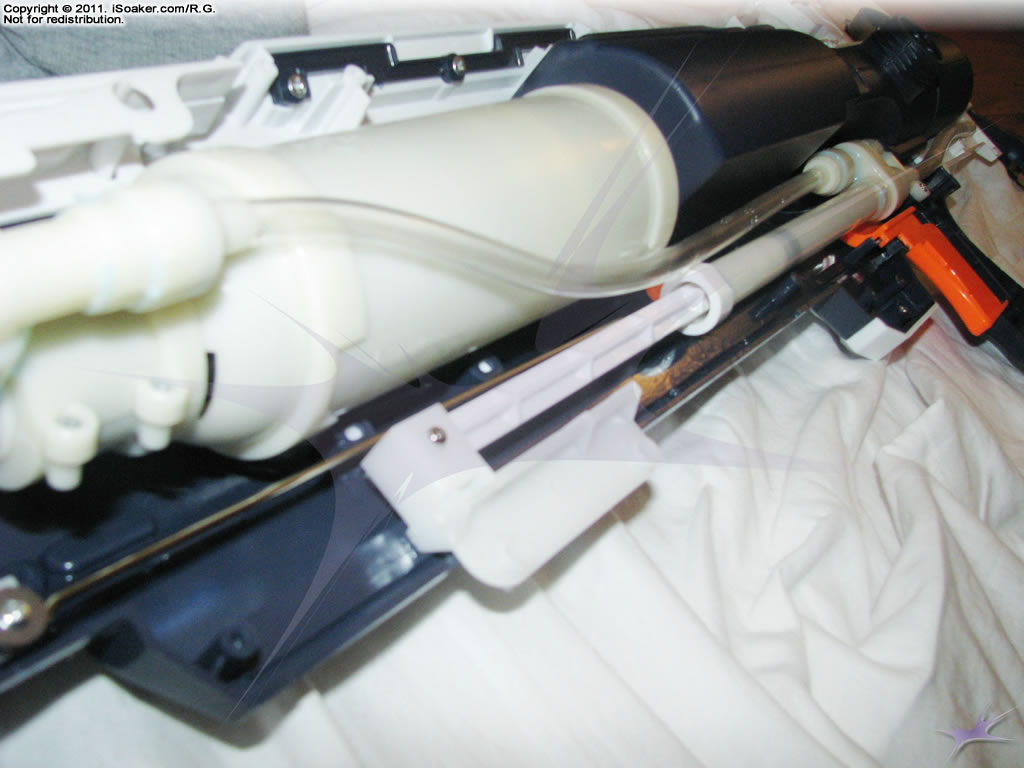

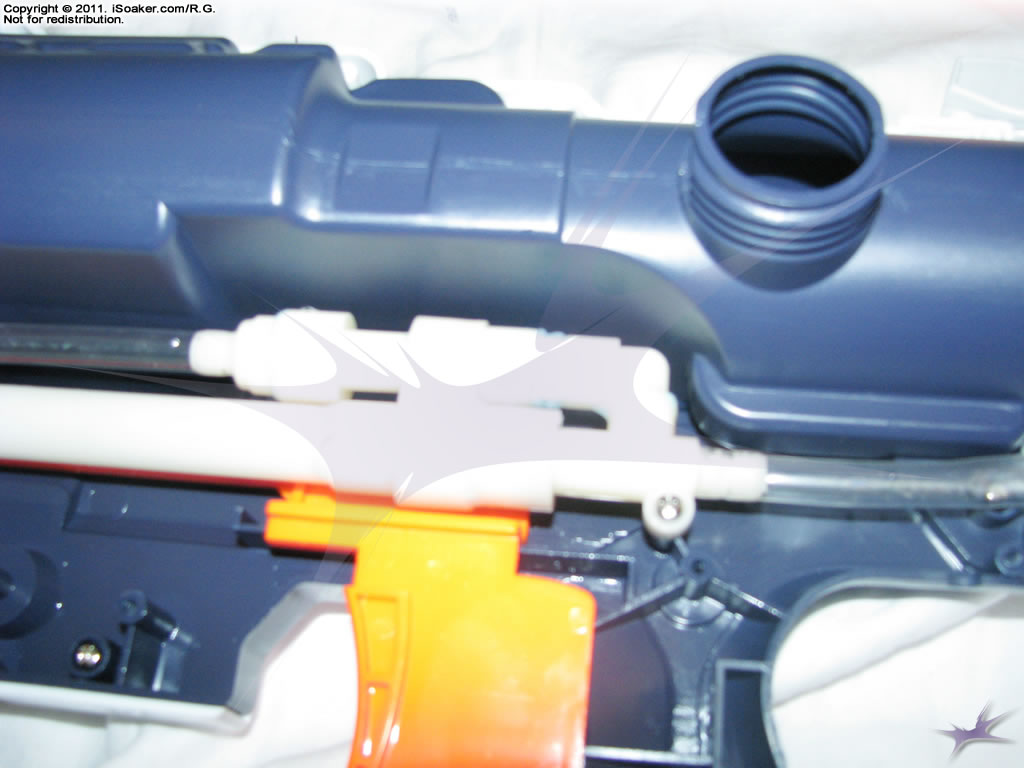

 Reservoir and pump check-valve assembly |
 |
 |
 |
