Tech - Super Soaker Liquidator Internals .:
Images from iSoaker.com

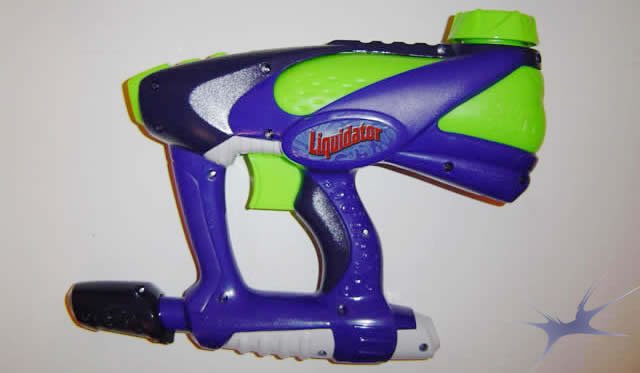

 Unopened Liquidator showing the screw holes. |

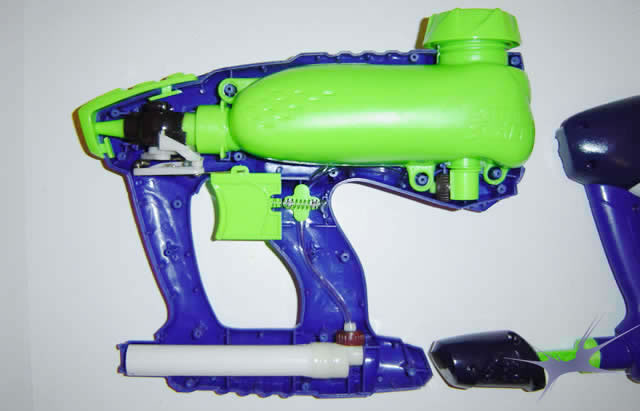

 Side case removed. Note: the pump shaft was left attached to the removed casing. |

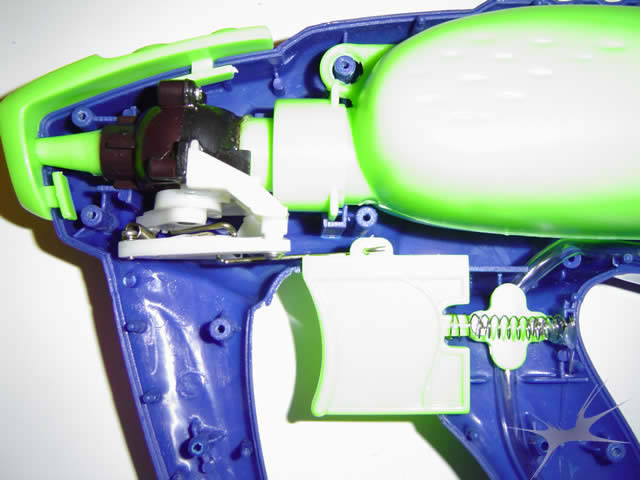

 Trigger mechanism overview. |

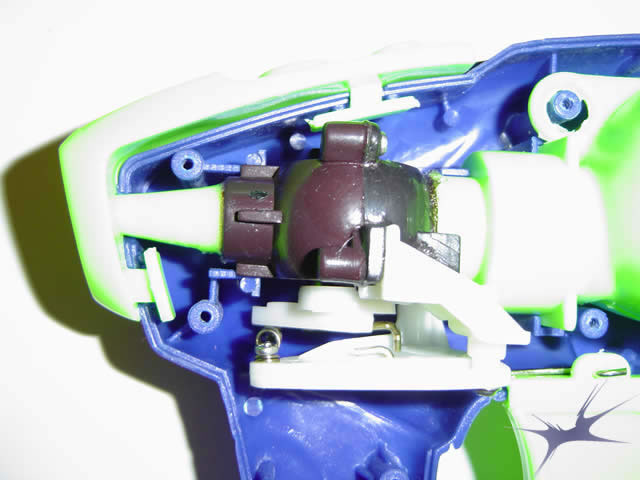

 Close-up of the nozzle's ball-valve. |

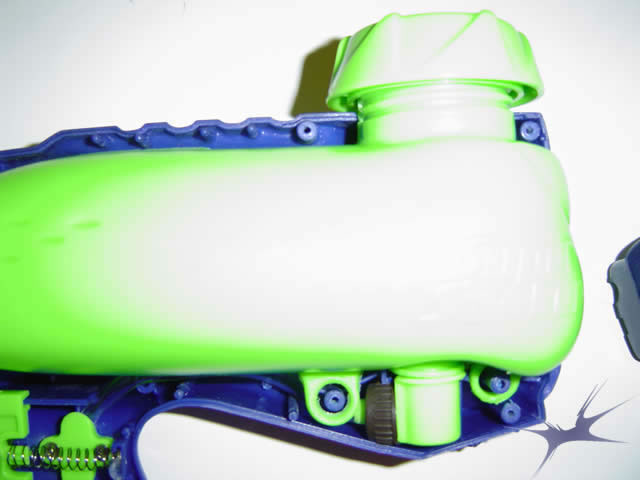

 Reservoir showing the over-pressure valve. |
 Angled picture of the pump shaft. The pump shaft is actually comprised of a couple of pieces (the white section of the shaft can be easily separated from the green piston. |
