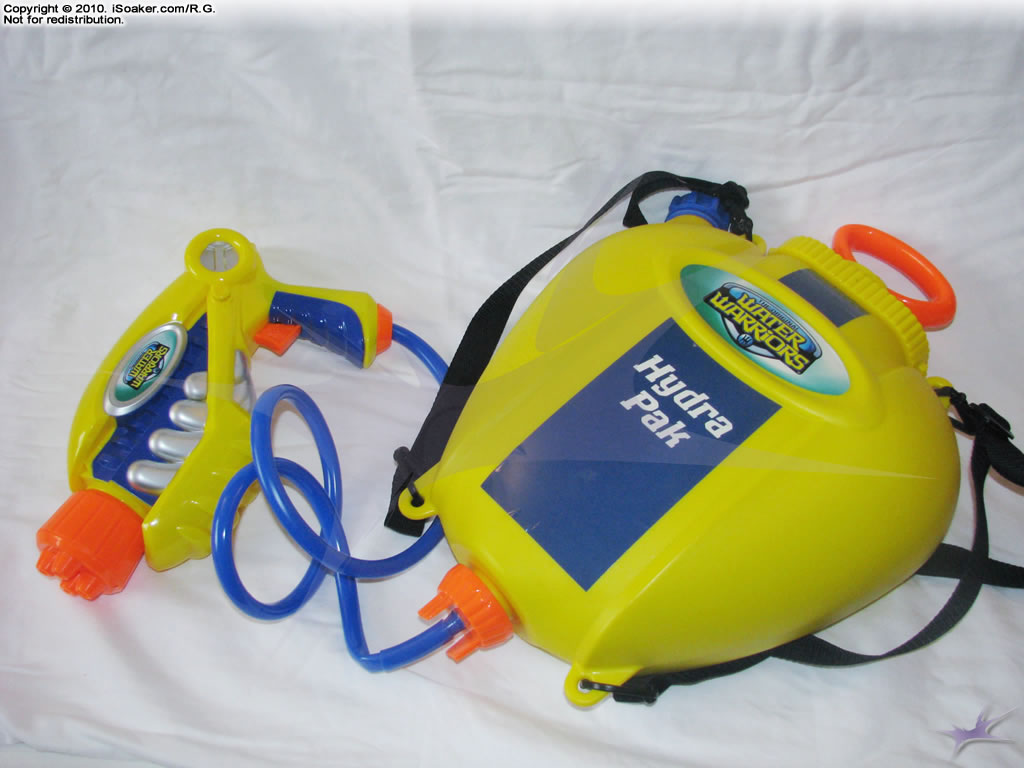

Unopened blaster |

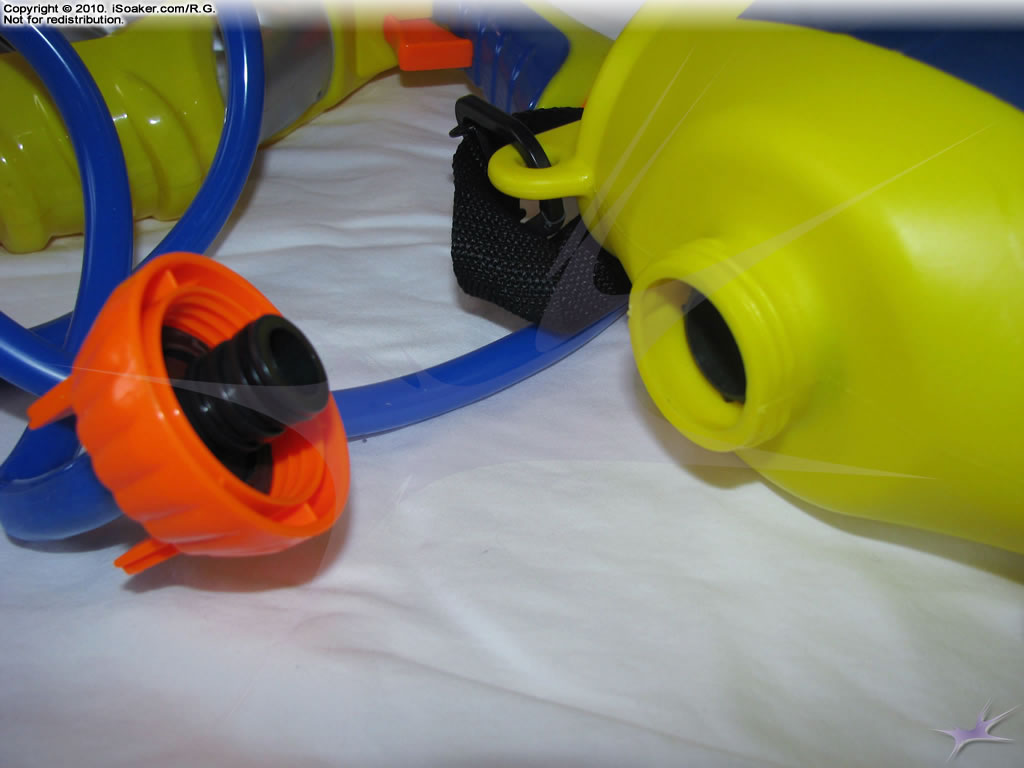

Base tube connector unscrews from bottom of tank |

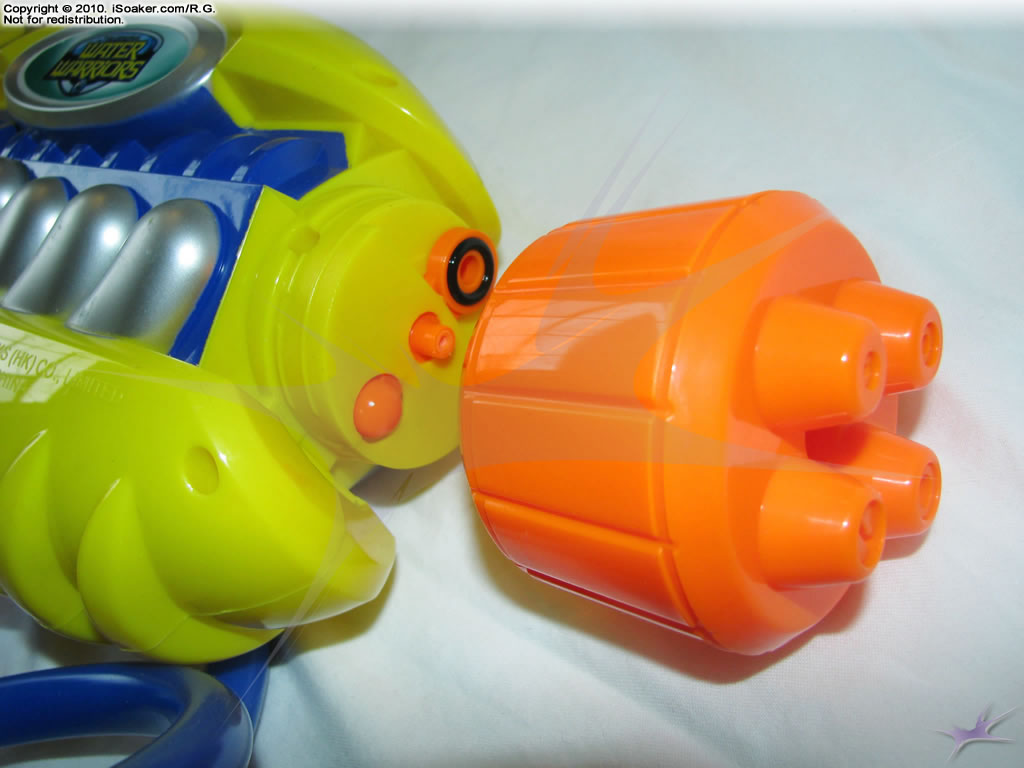

Nozzle selector removed |

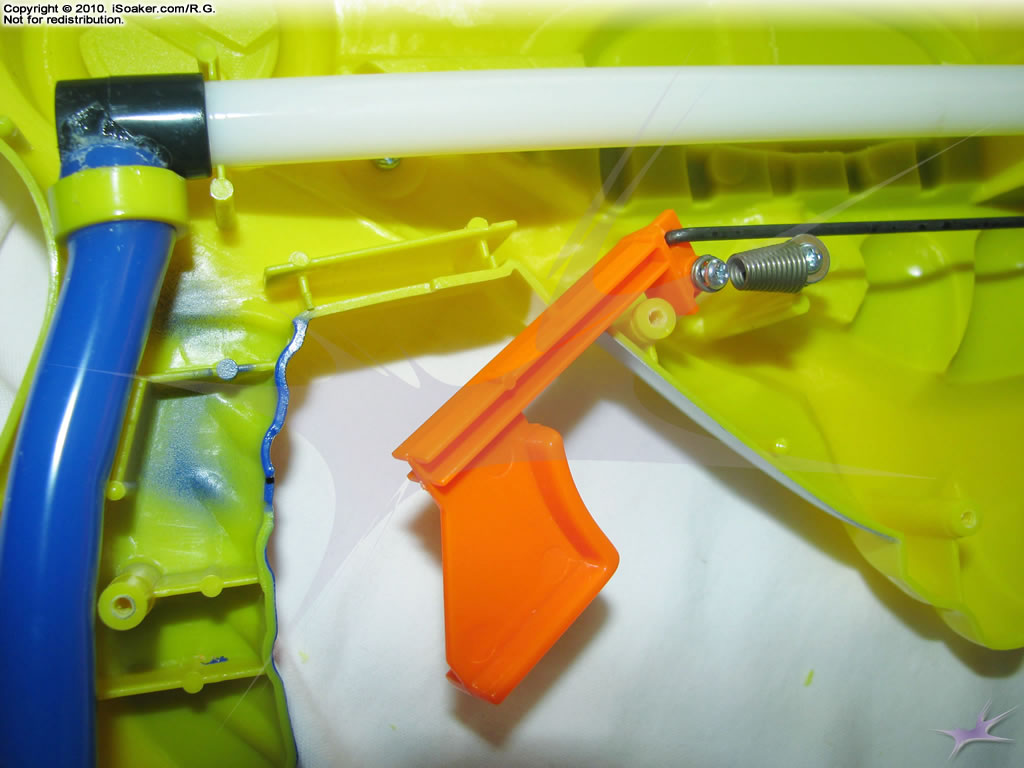

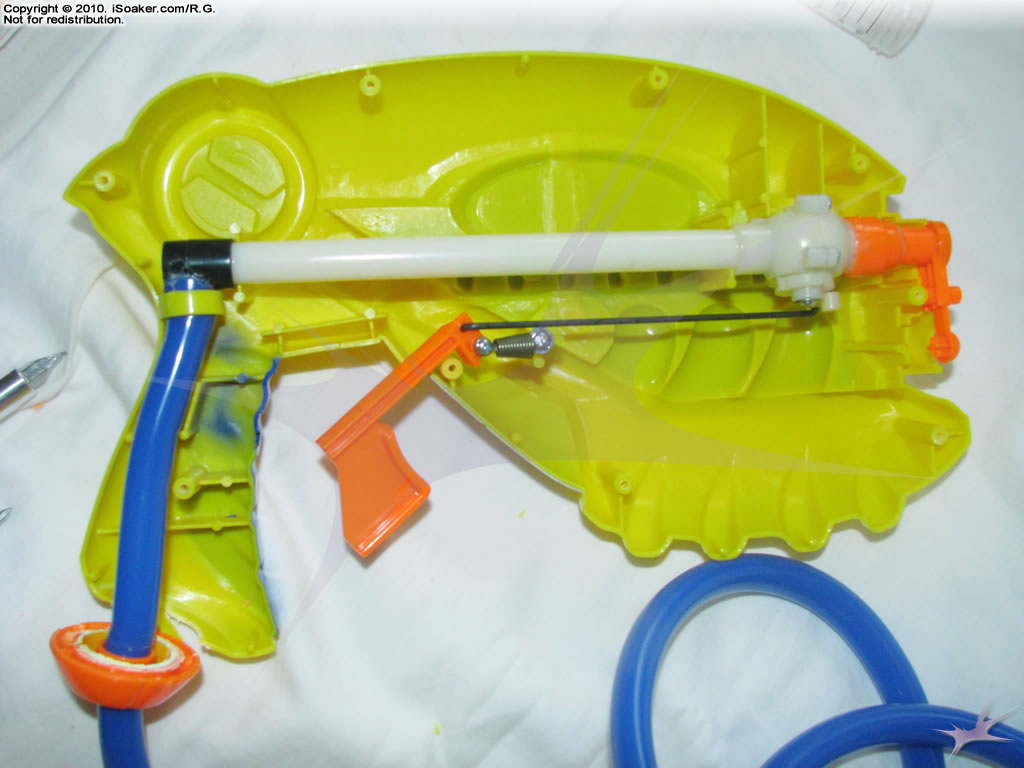

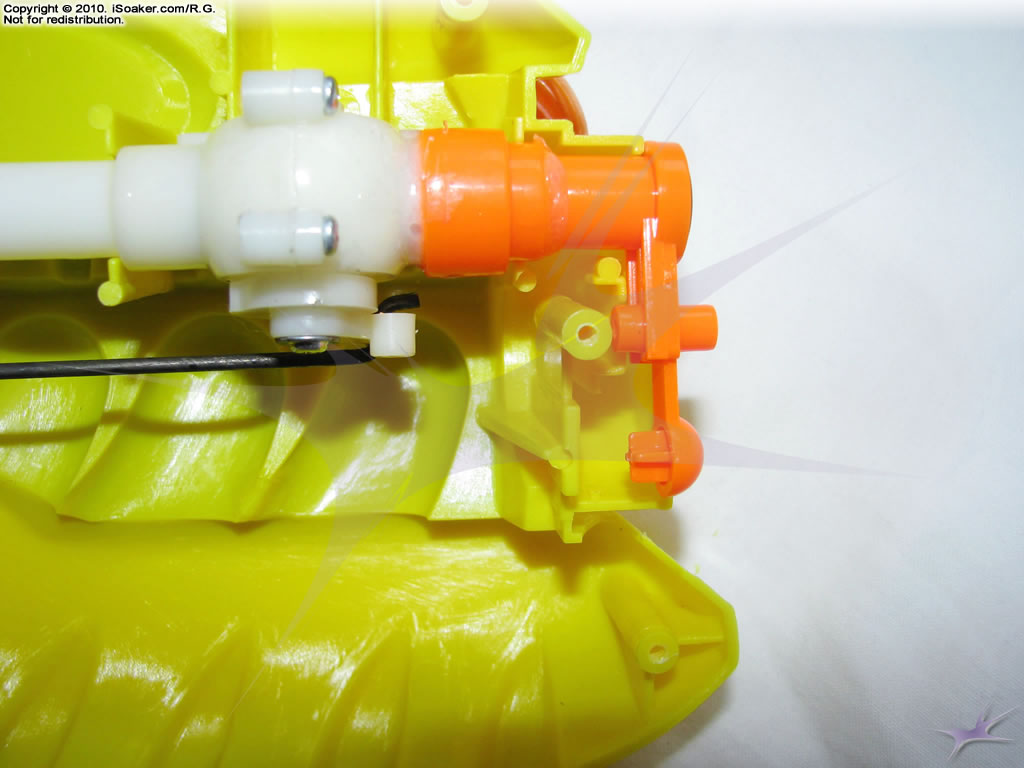

Blaster opened revealing trigger mechanism |

Ball valve assembly |
 |

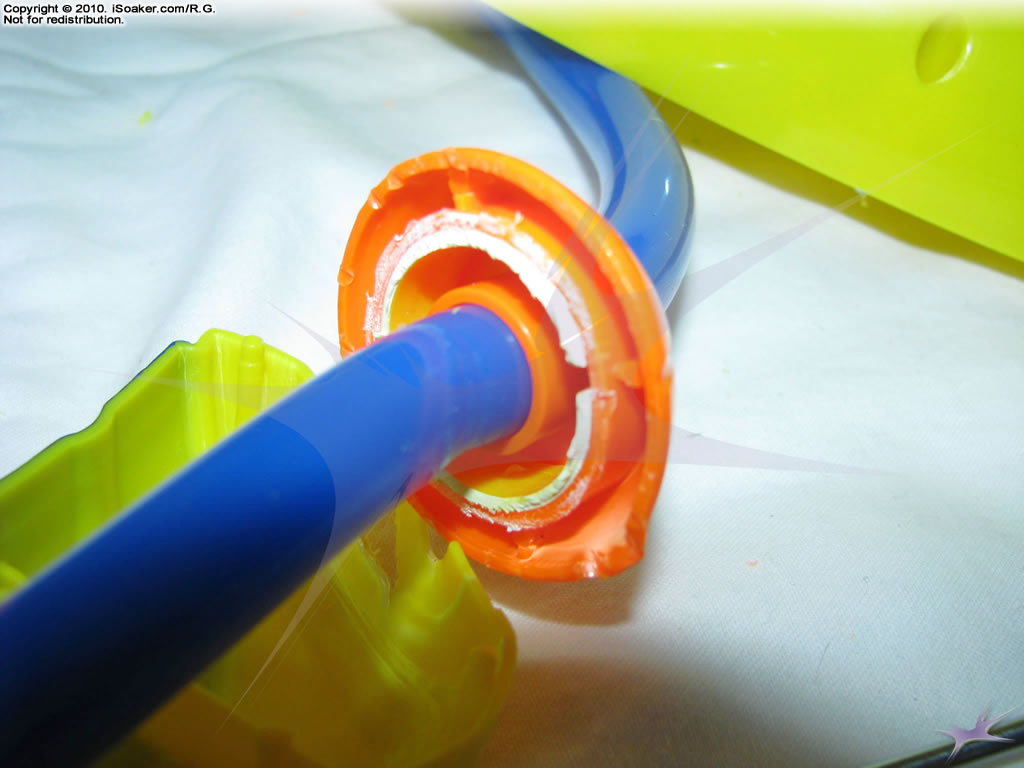

Hose guide cap glue tightly on. Plastic ripped during opening procedure. |

Pump - complete |

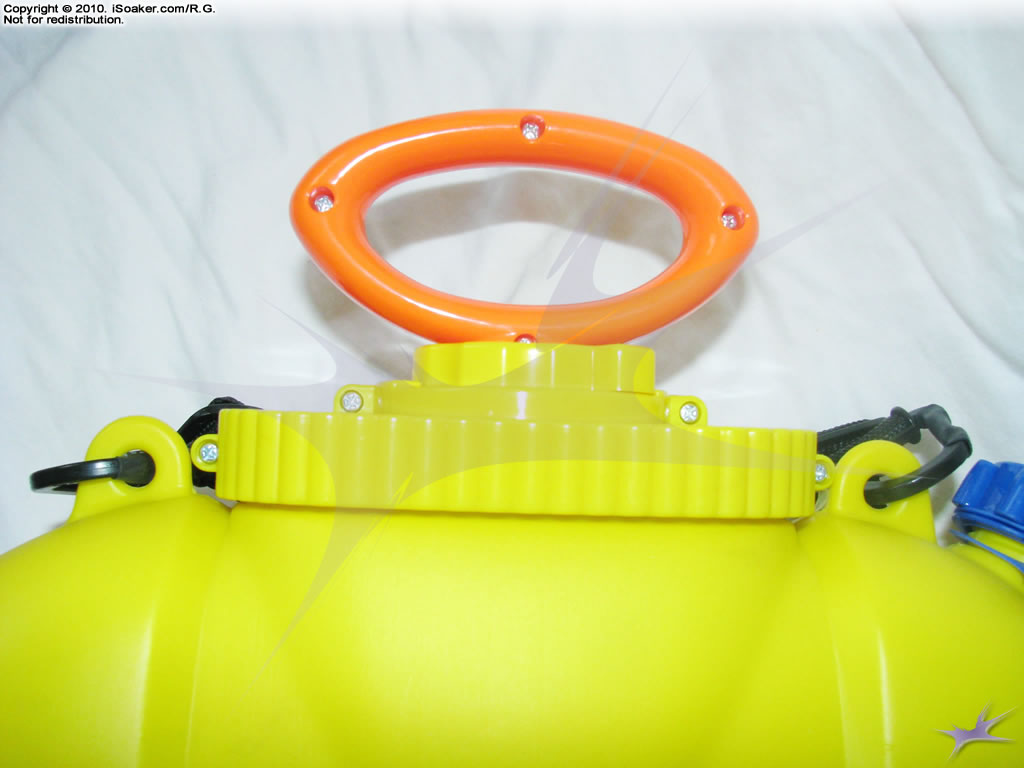

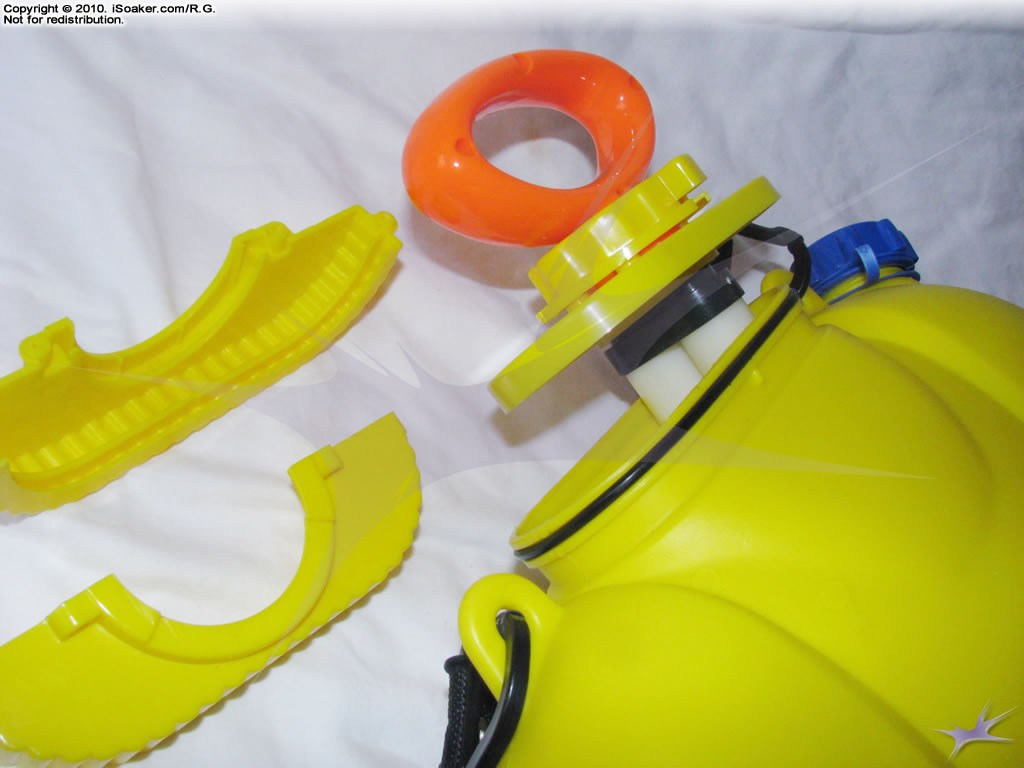

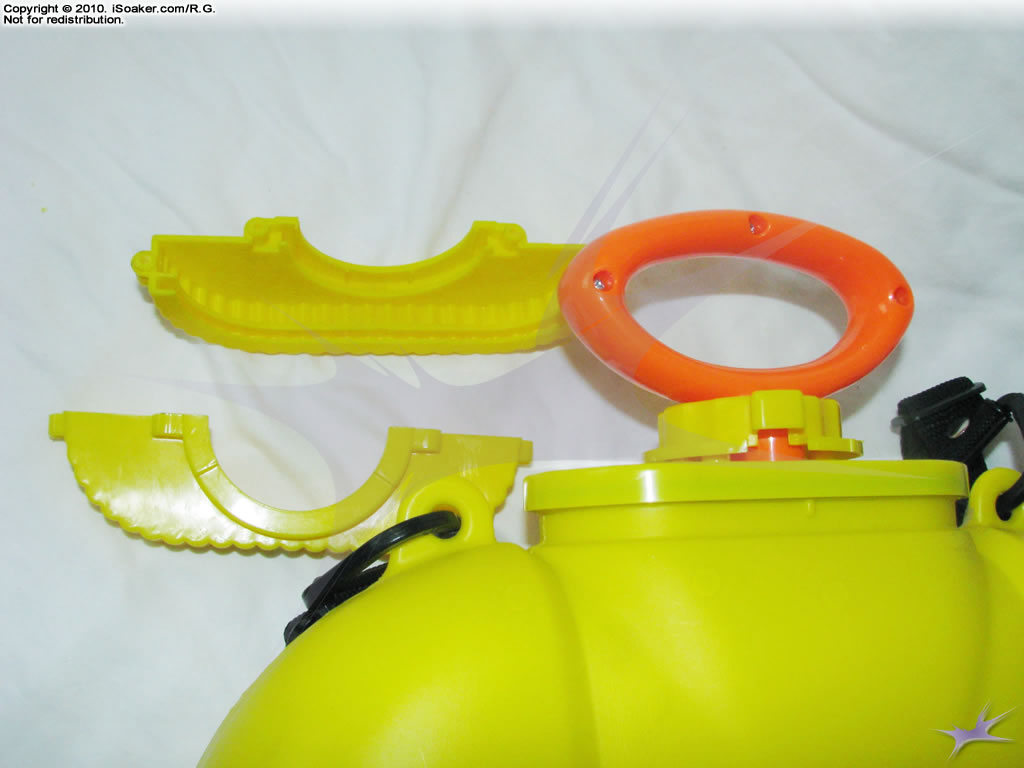

Pump assembly holders removed |

Pump and pressure chamber assembly detached from tank. |

Pump and pressure chamber assembly removed from tank. Dual Hydro Power Chambers revealed. |

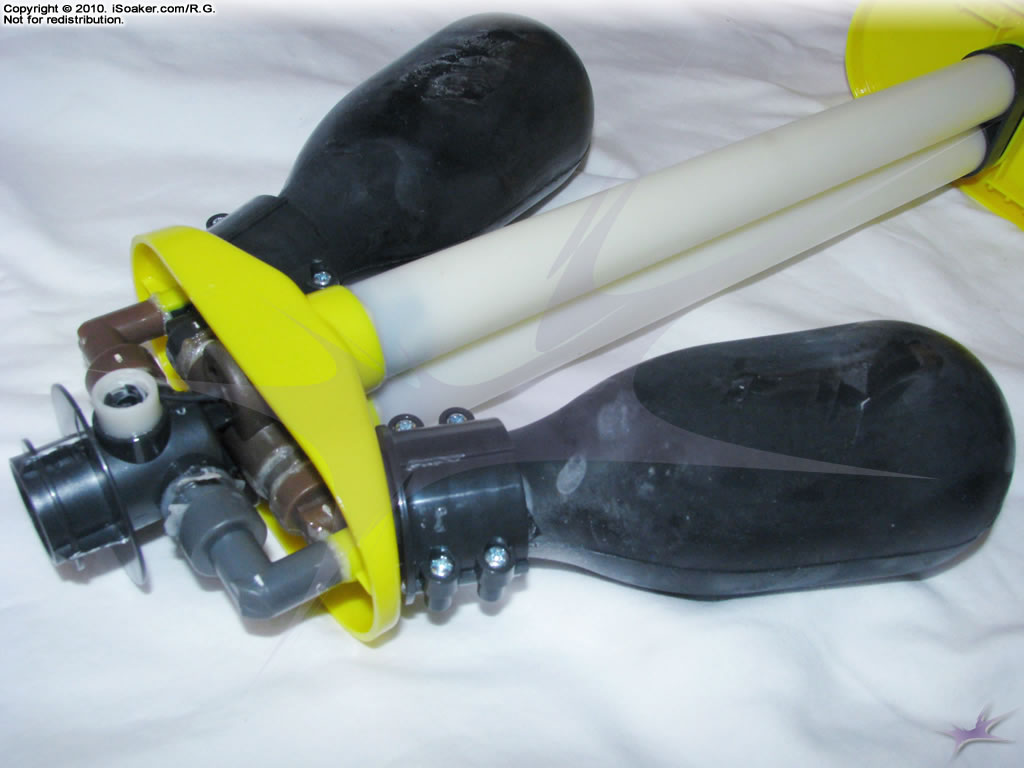

3/4 view of pressure chambers and dual-pump system |

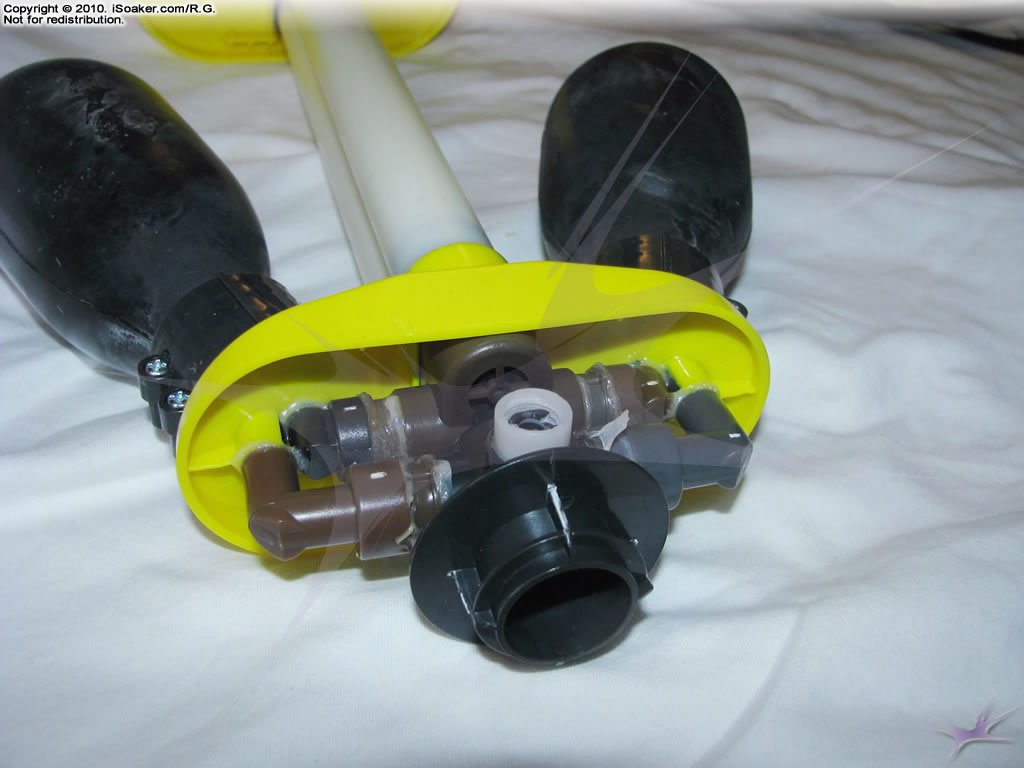

Closer view of the pump valve assembly |

View of the pump intake port (white) |

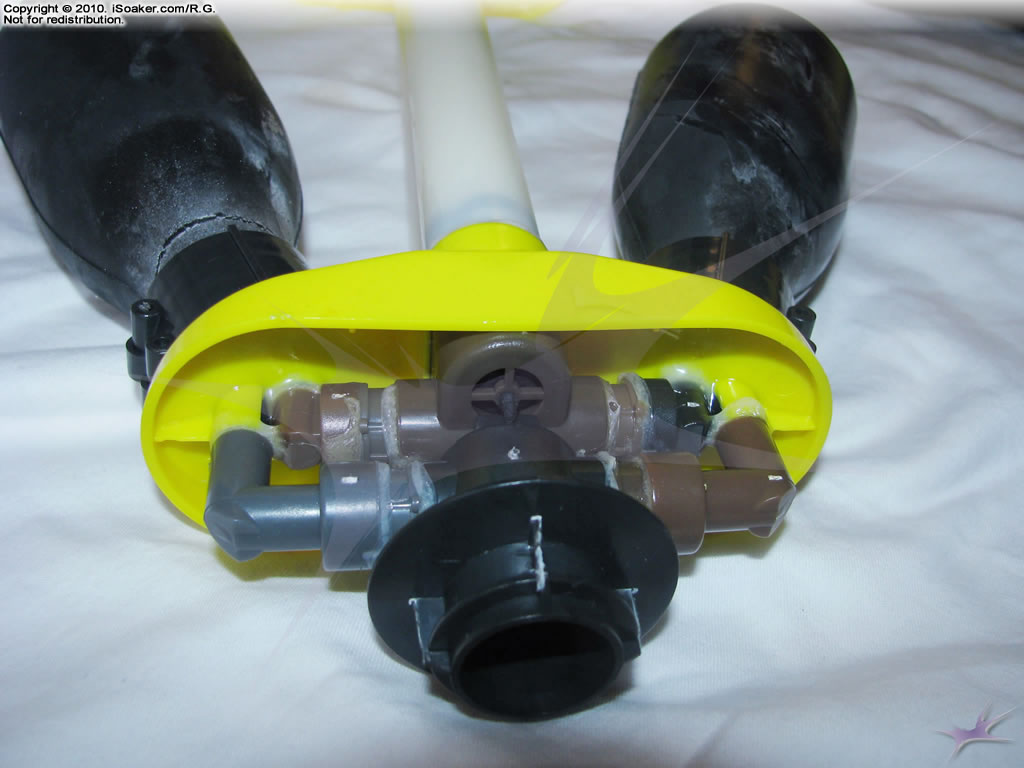

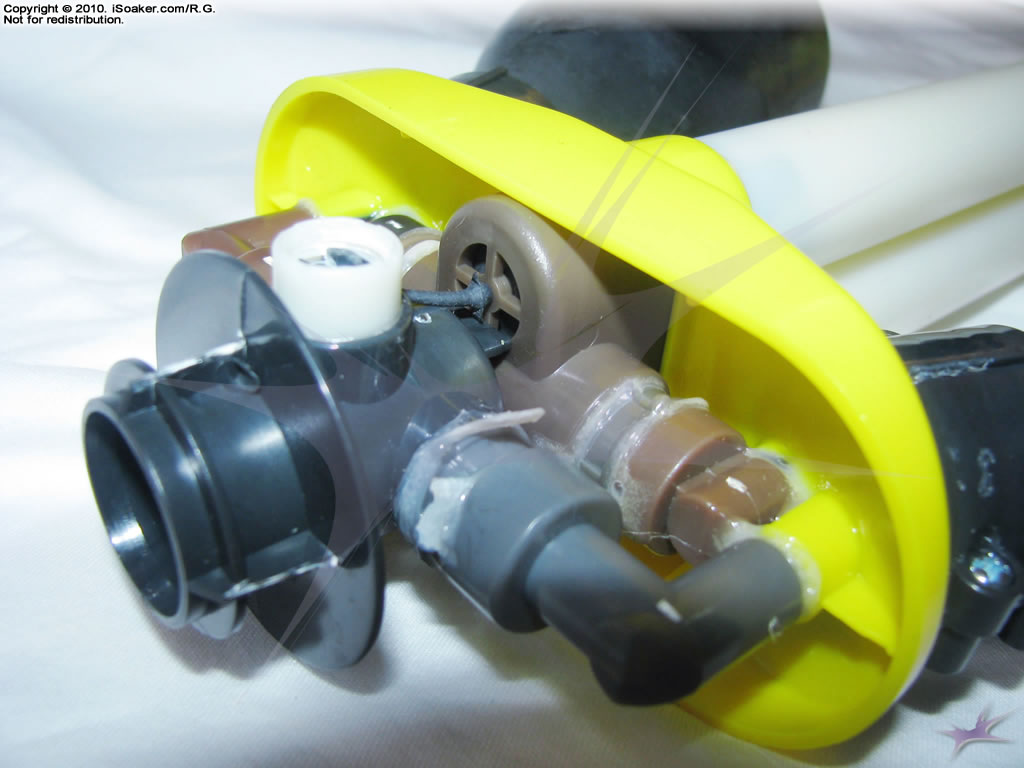

Backside view of the pump valve assembly |

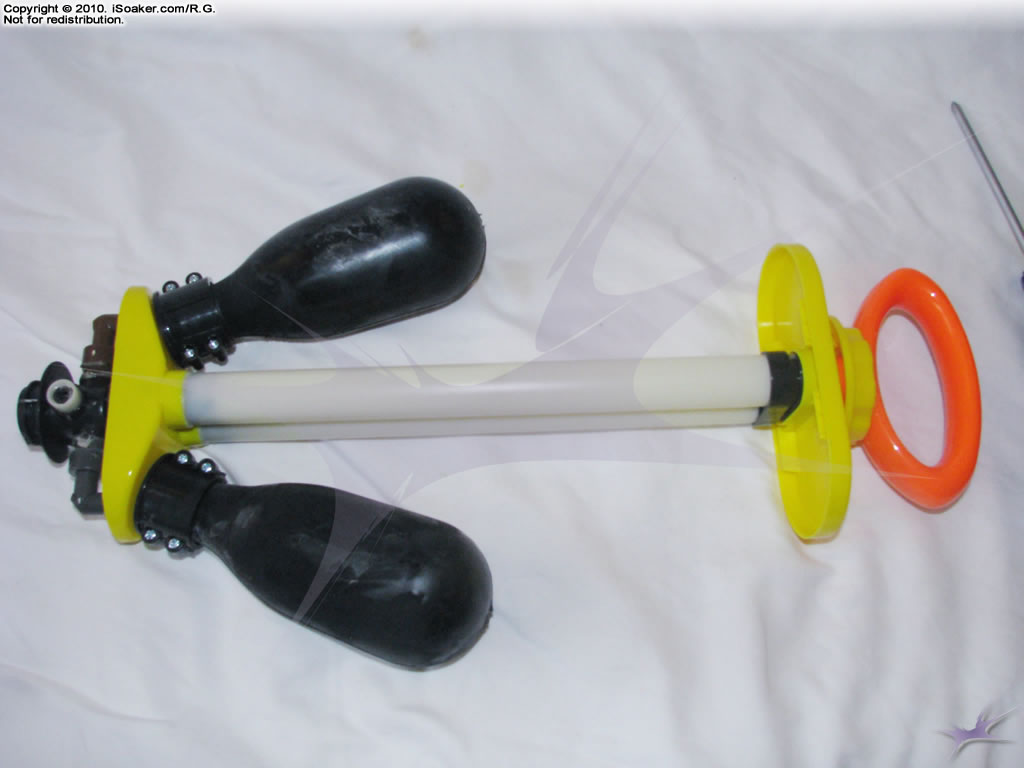

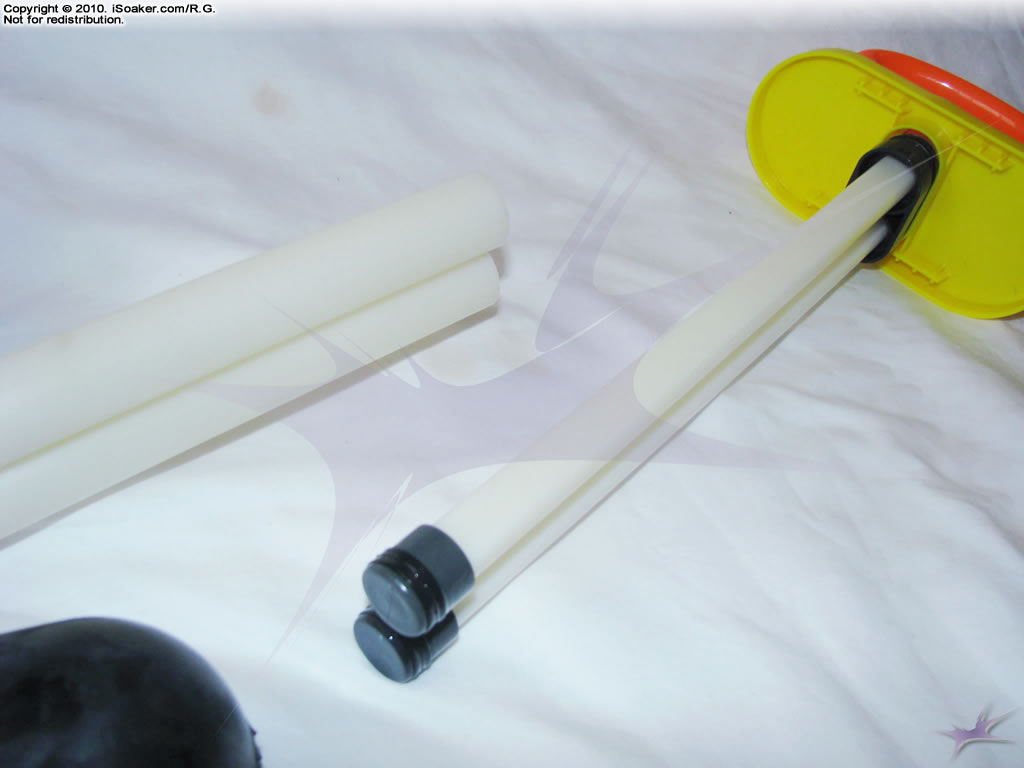

Dual pump rods removed from pump shafts. Pump grip and seals are glued onto the pump rods. |

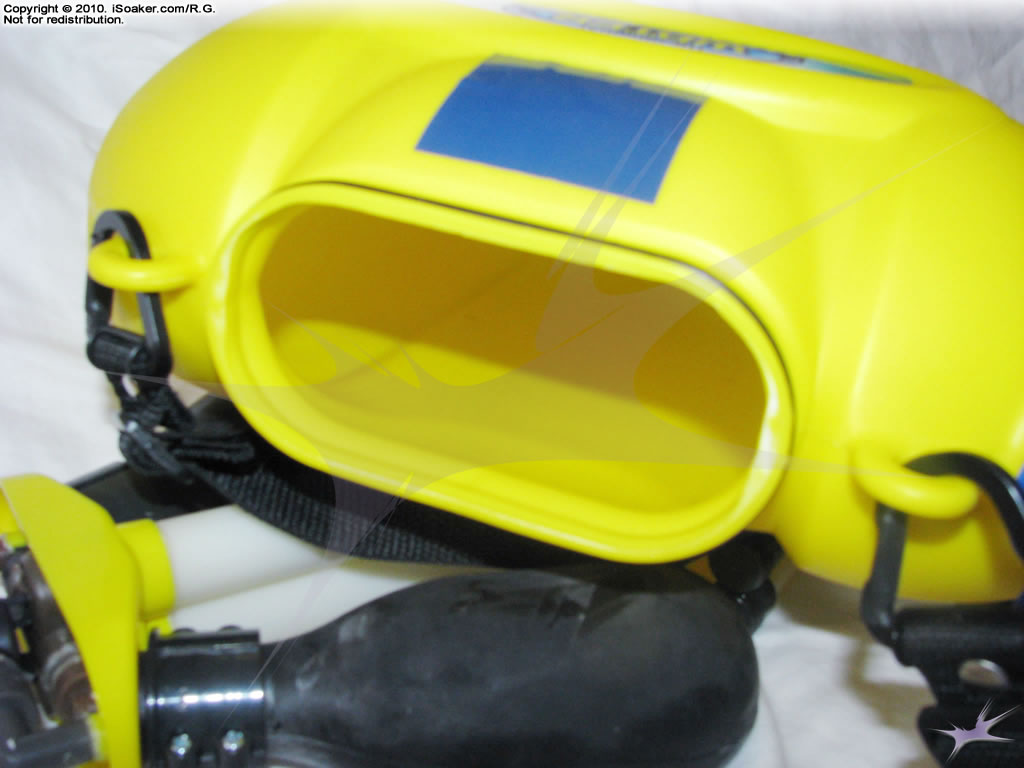

View of the backpack tank without the pump/pressure chamber assembly. |
|
